630-8W8-250-2NA
ActiveEDAC Inc.

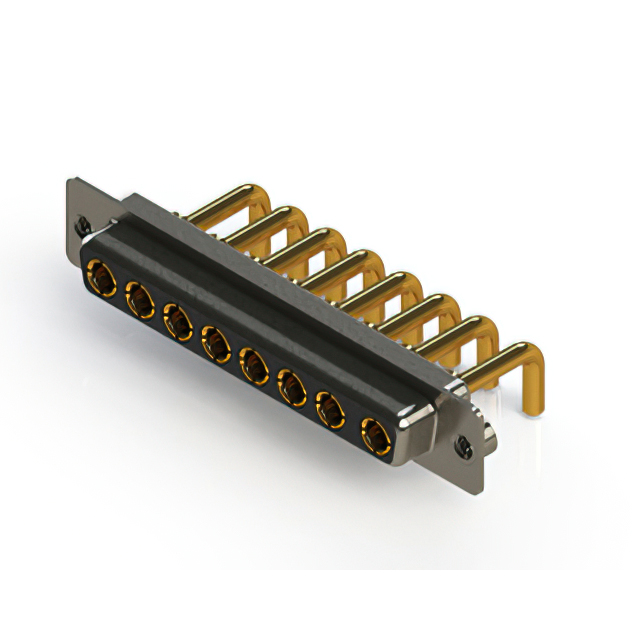

CONN D-SUB RCPT 8POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-8W8-250-2NA
ActiveEDAC Inc.
CONN D-SUB RCPT 8POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-8W8-250-2NA |
|---|---|
| Backset Spacing | 13.2 mm |
| Backset Spacing | 0.52 " |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polyester Thermoplastic |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 8W8 |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630-8W8 Series
...
| Part | Termination | Backset Spacing | Backset Spacing | Current Rating (Amps) | Mounting Type | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions | Contact Type | Dielectric Material | Number of Rows | Connector Style | Connector Type | Voltage Rating | Flange Feature | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Shell Material, Finish | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 10 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Housing/Shell (4-40) | Black | -55 °C | 125 °C | UL94 V-0 | |||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 20 A | Through Hole Right Angle | Copper Alloy | Gold | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Board Side (M3) | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Flash | |||
EDAC Inc. | Solder | 9.4 mm | 0.37 in | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Coax | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Housing/Shell (Unthreaded) | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Shielded | ||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 20 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Housing/Shell (4-40) | Black | -55 °C | 125 °C | UL94 V-0 | Board Lock Mounting Brackets | ||
EDAC Inc. | Solder | 9.4 mm | 0.37 in | Through Hole Right Angle | Copper Alloy | Gold | 8W8 | 4 | 8 | Coax | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | M3 | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Flash | Board Lock Mounting Brackets | |||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 10 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | 4-40 | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | ||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 10 A | Through Hole Right Angle | Copper Alloy | Gold | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | M3 | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Flash | Board Lock Mounting Brackets | ||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 20 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Housing/Shell (4-40) | Black | -55 °C | 125 °C | UL94 V-0 | |||
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 40 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | 4-40 | Black | -55 °C | 125 °C | UL94 V-0 | Nickel Plated Steel | Board Lock Mounting Brackets | |
EDAC Inc. | Solder | 13.2 mm | 0.52 " | 40 A | Through Hole Right Angle | Copper Alloy | Gold | 0.76 Ám | 30 Áin | 8W8 | 4 | 8 | Power | Polyester Thermoplastic | 1 | Combo D-Sub | Receptacle Female Sockets | 125 VDC | Housing/Shell (M3) | Black | -55 °C | 125 °C | UL94 V-0 | Board Lock Mounting Brackets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 13.59 | |
Description
General part information
630-8W8 Series
8 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
