853-41-022-10-011000
ActiveMill-Max Manufacturing Corp.

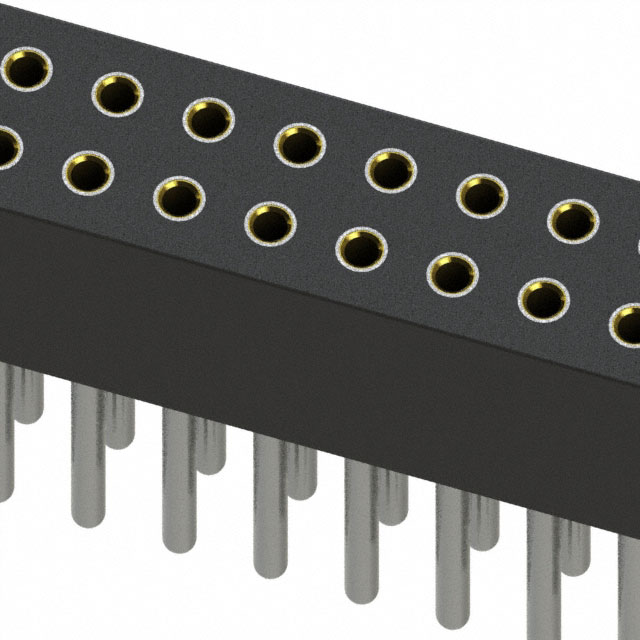

CONN RCPT 22POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
853-41-022-10-011000
ActiveMill-Max Manufacturing Corp.
CONN RCPT 22POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 853-41-022-10-011000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post [x] | 0.199 in |
| Contact Length - Post [x] | 5.05 mm |
| Contact Material | Brass Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.01 mm |
| Insulation Height | 0.158 " |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
853-41 Series
| Part | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Number of Positions Loaded | Fastening Type | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Material Flammability Rating | Contact Shape | Contact Finish - Mating | Termination | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Type | Insulation Material | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Surface Mount | 0.05 in | 1.27 mm | Beryllium Copper | -55 °C | 125 °C | 2 | UL94 V-0 | Circular | Gold | Solder | 40 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | 0.207 in | 5.25 mm | ||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Brass Alloy | 2 | Circular | Gold | Solder | 52 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polyamide (PA46) Nylon 4/6 | 0.158 " | 4.01 mm | 7.6 mm | 0.299 in | ||||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Beryllium Copper | -55 °C | 125 °C | 2 | UL94 V-0 | Circular | Gold | Solder | 20 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | 0.158 " | 4.01 mm | 2.6 mm | 0.102 in | ||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Beryllium Copper | -55 °C | 125 °C | 2 | UL94 V-0 | Circular | Gold | Solder | 2 | 10 çin | 0.25 çm | Tin | Female Socket | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | 0.158 " | 4.01 mm | 2.6 mm | 0.102 in | ||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Brass Alloy | 2 | Circular | Gold | Solder | 96 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polyamide (PA46) Nylon 4/6 | 0.158 " | 4.01 mm | 7.6 mm | 0.299 in | ||||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Brass Alloy | 2 | Circular | Gold | Solder | 20 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polyamide (PA46) Nylon 4/6 | 0.158 " | 4.01 mm | 7.6 mm | 0.299 in | ||||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Beryllium Copper | -55 °C | 125 °C | 2 | UL94 V-0 | Circular | Gold | Solder | 82 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | 0.158 " | 4.01 mm | 2.6 mm | 0.102 in | ||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Brass Alloy | 2 | Circular | Gold | Solder | 36 | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polyamide (PA46) Nylon 4/6 | 0.158 " | 4.01 mm | 7.6 mm | 0.299 in | ||||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Surface Mount | 0.05 in | 1.27 mm | Beryllium Copper | -55 °C | 125 °C | 2 | UL94 V-0 | Circular | Gold | Solder | 2 | 10 çin | 0.25 çm | Tin | Female Socket | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | 0.207 in | 5.25 mm | ||||||
Mill-Max Manufacturing Corp. | Receptacle | 200 µin | 5.08 µm | Black | All | Push-Pull | Through Hole | 0.05 in | 1.27 mm | Brass Alloy | 2 | Circular | Gold | Solder | 22 positions | 0.05 in | 1.27 mm | 10 çin | 0.25 çm | Tin | Female Socket | Polyamide (PA46) Nylon 4/6 | 0.158 " | 4.01 mm | 0.199 in | 5.05 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 16.23 | |
Description
General part information
853-41 Series
22 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
