853-41-002-10-001000

Active

Mill-Max Manufacturing Corp.

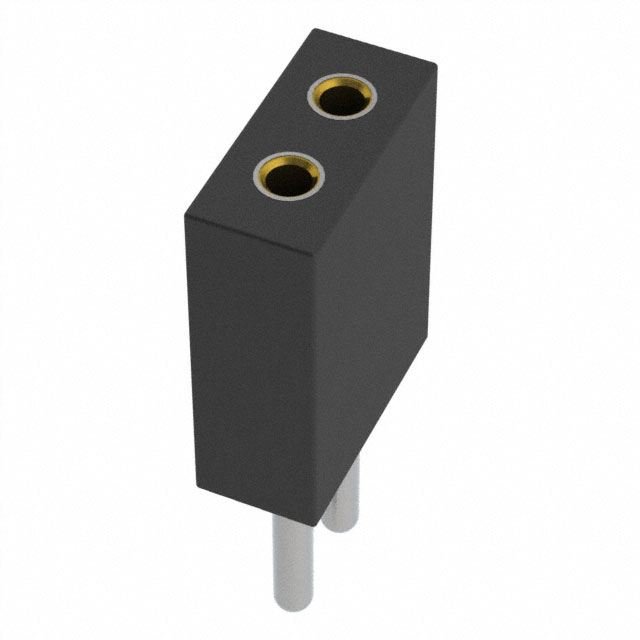

CONN RCPT 2POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

853-41-002-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	853-41-002-10-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.01 mm
Insulation Height	0.158 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

853-41 Series

Part	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Fastening Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Type	Insulation Material	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 853-41-040-30-001000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Surface Mount	0.05 in	1.27 mm	Beryllium Copper	-55 °C	125 °C	2	UL94 V-0	Circular	Gold	Solder	40	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	0.207 in	5.25 mm
Mill-Max Manufacturing Corp. 853-41-052-10-021000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Brass Alloy			2		Circular	Gold	Solder	52	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polyamide (PA46) Nylon 4/6		0.158 "	4.01 mm	7.6 mm	0.299 in
Mill-Max Manufacturing Corp. 853-41-020-10-001000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Beryllium Copper	-55 °C	125 °C	2	UL94 V-0	Circular	Gold	Solder	20	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	0.158 "	4.01 mm	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-41-002-10-001000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Beryllium Copper	-55 °C	125 °C	2	UL94 V-0	Circular	Gold	Solder	2			10 çin	0.25 çm	Tin	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	0.158 "	4.01 mm	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-41-096-10-021000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Brass Alloy			2		Circular	Gold	Solder	96	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polyamide (PA46) Nylon 4/6		0.158 "	4.01 mm	7.6 mm	0.299 in
Mill-Max Manufacturing Corp. 853-41-020-10-021000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Brass Alloy			2		Circular	Gold	Solder	20	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polyamide (PA46) Nylon 4/6		0.158 "	4.01 mm	7.6 mm	0.299 in
Mill-Max Manufacturing Corp. 853-41-082-10-001000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Beryllium Copper	-55 °C	125 °C	2	UL94 V-0	Circular	Gold	Solder	82	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	0.158 "	4.01 mm	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-41-036-10-021000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Brass Alloy			2		Circular	Gold	Solder	36	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polyamide (PA46) Nylon 4/6		0.158 "	4.01 mm	7.6 mm	0.299 in
Mill-Max Manufacturing Corp. 853-41-002-30-001000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Surface Mount	0.05 in	1.27 mm	Beryllium Copper	-55 °C	125 °C	2	UL94 V-0	Circular	Gold	Solder	2			10 çin	0.25 çm	Tin	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	0.207 in	5.25 mm
Mill-Max Manufacturing Corp. 853-41-022-10-011000	Receptacle	200 µin	5.08 µm	Black	All	Push-Pull	Through Hole	0.05 in	1.27 mm	Brass Alloy			2		Circular	Gold	Solder	22 positions	0.05 in	1.27 mm	10 çin	0.25 çm	Tin	Female Socket	Polyamide (PA46) Nylon 4/6		0.158 "	4.01 mm			0.199 in	5.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.00

Description

General part information

853-41 Series

2 Position Receptacle Connector Through Hole Gold

Documents

Technical documentation and resources

No documents available
