MVU18-47PX-A-BOTTLE

Active

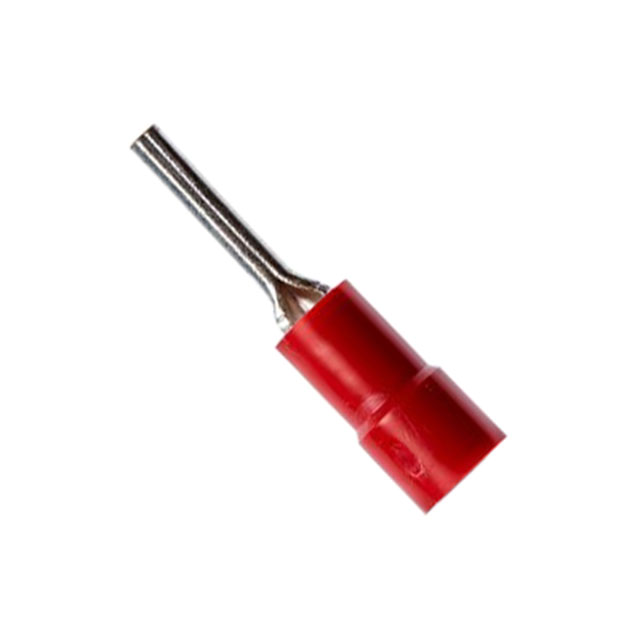

CONN WIRE PIN 18-22AWG 100PC

Deep-Dive with AI

Search across all available documentation for this part.

MVU18-47PX-A-BOTTLE

Active

CONN WIRE PIN 18-22AWG 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 106.71

Description

General part information

MVU18 Series

Wire Pin Terminal Connector 18-22 AWG Scotchlok™ Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVU18-47PX-A-BOTTLE	MVU18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Copper	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Features	-	Butted Seam
Gender	-	Male, Female
Insulation	Insulated	Non-Mating End Insulated, Insulated, Fully Insulated
Insulation Diameter	3.81 mm	3.81 mm
Insulation Diameter	0.15 in	0.15 - 3.68 mm
Insulation Diameter	-	0.145 "
Length - Barrel	-	0.19 in
Length - Barrel	-	4.83 mm
Length - Overall	0.9 in	0.9 in
Length - Overall	22.86 mm	22.86 - 23.62 mm
Length - Overall	-	19.81 - 22.35 mm
Length - Overall	-	0.78 - 0.93 "
Length - Pin [x]	0.47 in	0.47 in
Length - Pin [x]	11.94 mm	11.94 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.45 in
Length - Termination	-	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter [diameter]	1.91 mm	1.91 mm
Pin Diameter [diameter]	0.075 in	0.075 in
Stud/Tab Size	-	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud
Tab Thickness	-	0.02 - 0.032 in
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	4.75 - 6.35 mm
Tab Width	-	0.187 - 0.25 in
Terminal Type	-	Pin (Plug), Male, Standard, Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.25 - 0.47 "
Width - Outer Edges	-	6.35 - 11.94 mm
Width - Outer Edges	-	8.64 mm
Width - Outer Edges	-	0.34 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MVU18 Series

VINYL INSULATED BUTTED SEAM MALE DISCONNECT

Part	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel [x]	Length - Barrel [x]	Color	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Finish	Length - Overall	Contact Material	Tab Width	Tab Width	Features	Gender	Tab Thickness	Tab Thickness	Mounting Type	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Pin [x]	Length - Pin [x]	Insulation Diameter	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Thickness	Thickness	Number of Wire Entries
3M MVU18-156DMK-A	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "	3.96 mm	0.156 in	0.19 in	4.83 mm	Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Male, Pin (Plug)
3M MVU18-250DMK		3.68 mm	0.145 "		0.93 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin	23.62 mm	Copper, ETP	6.35 mm	0.25 in	Butted Seam	Male	0.032 in	0.81 mm	Free Hanging (In-Line)
3M MVU18-6FLK	Vinyl	3.68 mm	0.145 "	22.35 mm	0.88 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Snap, Spring	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm	0.25 "	6.35 mm	6 Stud	0.25 in	6.35 mm
3M MVU18-47PK-A	Vinyl	0.15 in								Red	Crimp	Insulated	22 AWG	17.5 AWG		Tin	22.86 mm	Copper															0.47 in	11.94 mm	3.81 mm	0.9 in	1.91 mm	0.075 in
3M MVU18-6R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
3M MVU18-4R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	4 Stud									0.03 in	0.76 mm
3M MVU18BCK										Red	Crimp	Fully Insulated	22 AWG	17.5 AWG	Butt Splice, Individual Openings, Inline																										2
3M MVU18-187DFX-BOTTLE		3.68 mm	0.145 "	19.81 mm	0.78 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin		Brass	4.75 mm	0.187 in	Butted Seam	Female	0.02 "	0.51 mm	Free Hanging (In-Line)
3M MVU18-10FBK	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "					Red	Crimp	Insulated	22 AWG	17.5 AWG	Standard	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm			10 Stud	0.25 in	6.35 mm
3M MVU18-6R/SX-BOTTLE	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
