MDM-25SSM7-A174

Active

ITT Cannon, LLC

MDM-25SSM7-A174

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDM-25SSM7-A174

Active

ITT Cannon, LLC

MDM-25SSM7-A174

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-25SSM7-A174

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Flange Feature	Mating Side, Female Screwlock (2-56)
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Primary Material	Metal
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Wire Gauge	26 AWG

MDM-2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Contact Type	Connector Style	Dielectric Material	Contact Finish	Connector Type	Features	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Number of Rows	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Termination	Mounting Type	Length	Length	2nd Connector	Color	1st Connector	Type	Wire Gauge	Primary Material
ITT Cannon, LLC MDM-21SSK	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	2	Cable Side Male Jackscrew (2-56)
ITT Cannon, LLC MDM-25PBR	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy			Aluminum Yellow Chromate Plated Cadmium	2	Housing/Shell (Unthreaded)	0.05	0.1	Solder	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-21PBRP-TL56
ITT Cannon, LLC MDM-25SH002B								Gold													1 ft	304.8 mm	Individual Wire Leads	Individual Multiple	Female Sockets Receptacle	D-Type Micro-D
ITT Cannon, LLC MDM-21PSF	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	2	Housing/Shell (Unthreaded)
ITT Cannon, LLC MDM-25PBSPTL57A174
ITT Cannon, LLC MDM-25SSM7-A174				3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets		Copper Alloy	0.043	0.05	Aluminum Alloy Electroless Nickel Plated	2	Female Screwlock (2-56) Mating Side				Free Hanging (In-Line)							26 AWG	Metal
ITT Cannon, LLC MDM-25SH027L-A174	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Electroless Nickel Plated	2	Cable Side Male Jackscrew (2-56)			Wire Leads
ITT Cannon, LLC MDM-25PBSM7	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy			Aluminum Yellow Chromate Plated Cadmium	2	Female Screwlock (2-56) Mating Side	0.05	0.1	Solder	Panel Mount Through Hole
ITT Cannon, LLC MDM-21SSB-A174	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Electroless Nickel Plated	2	Housing/Shell (Unthreaded)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 314.06
		10	$ 291.03
		25	$ 280.56

Description

General part information

MDM-2 Series

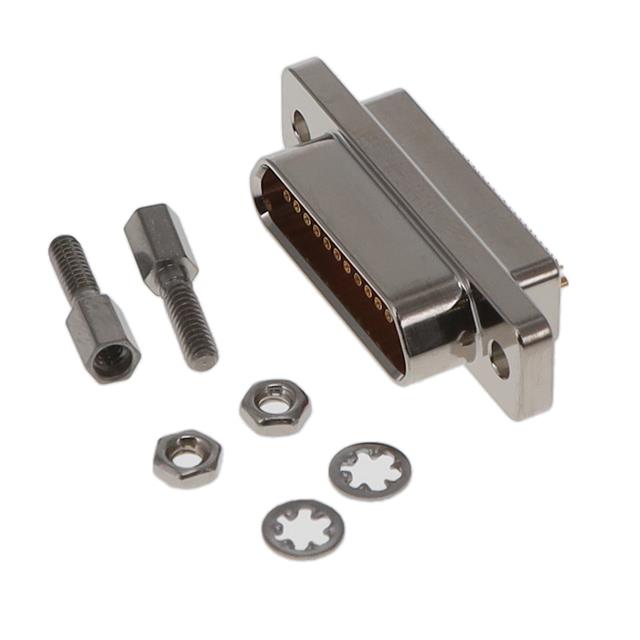

25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
