MDM-21PSF

Active

ITT Cannon, LLC

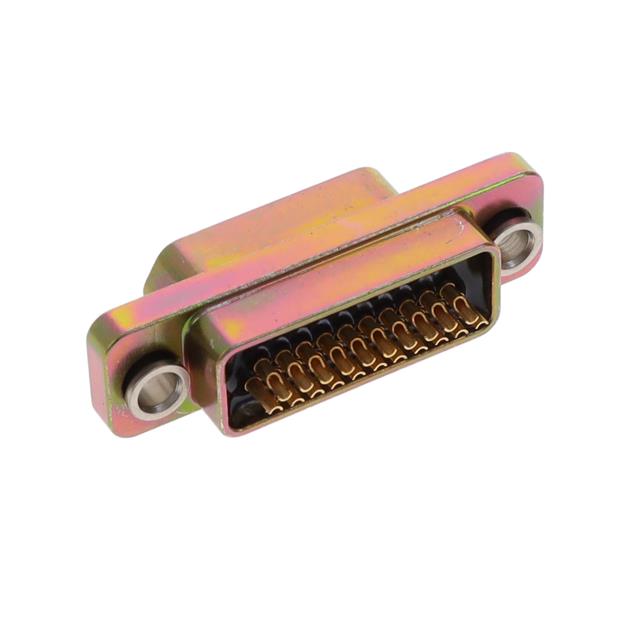

CONN MICRO-D PLUG 21POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Microminiature Catalog

MDM-21PSF

Active

ITT Cannon, LLC

CONN MICRO-D PLUG 21POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet Microminiature Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-21PSF

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

MDM-2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Contact Type	Connector Style	Dielectric Material	Contact Finish	Connector Type	Features	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Number of Rows	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Termination	Mounting Type	Length	Length	2nd Connector	Color	1st Connector	Type	Wire Gauge	Primary Material
ITT Cannon, LLC MDM-21SSK	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	2	Cable Side Male Jackscrew (2-56)
ITT Cannon, LLC MDM-25PBR	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy			Aluminum Yellow Chromate Plated Cadmium	2	Housing/Shell (Unthreaded)	0.05	0.1	Solder	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-21PBRP-TL56
ITT Cannon, LLC MDM-25SH002B								Gold													1 ft	304.8 mm	Individual Wire Leads	Individual Multiple	Female Sockets Receptacle	D-Type Micro-D
ITT Cannon, LLC MDM-21PSF	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	2	Housing/Shell (Unthreaded)
ITT Cannon, LLC MDM-25PBSPTL57A174
ITT Cannon, LLC MDM-25SSM7-A174				3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets		Copper Alloy	0.043	0.05	Aluminum Alloy Electroless Nickel Plated	2	Female Screwlock (2-56) Mating Side				Free Hanging (In-Line)							26 AWG	Metal
ITT Cannon, LLC MDM-25SH027L-A174	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Electroless Nickel Plated	2	Cable Side Male Jackscrew (2-56)			Wire Leads
ITT Cannon, LLC MDM-25PBSM7	-55 °C	125 °C		3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Male Pins Plug	Shielded	Copper Alloy			Aluminum Yellow Chromate Plated Cadmium	2	Female Screwlock (2-56) Mating Side	0.05	0.1	Solder	Panel Mount Through Hole
ITT Cannon, LLC MDM-21SSB-A174	-55 °C	125 °C	21	3 A	Signal	D-Type Micro-D	Liquid Crystal Polymer (LCP)	Gold	Receptacle Female Sockets	Shielded	Copper Alloy	0.043	0.05	Aluminum Electroless Nickel Plated	2	Housing/Shell (Unthreaded)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 178.06
		10	$ 165.00
		25	$ 159.07
		50	$ 157.88

Description

General part information

MDM-2 Series

21 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Microminiature Catalog

Datasheet
