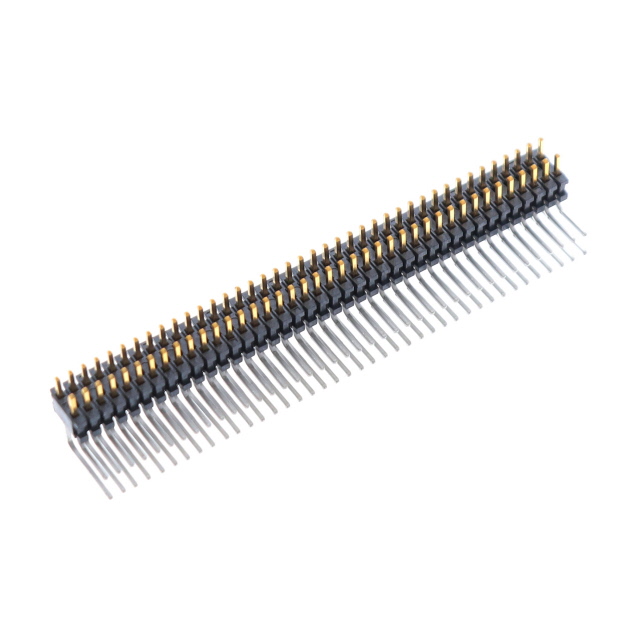

TMS-140-02-S-D-RA

Active

Samtec Inc.

.050" (1.27MM) MICRO HEADER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMS-140-02-S-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

TMS-140 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Insulation Material	Contact Finish - Post	Contact Material	Number of Positions	Contact Shape	Fastening Type	Contact Type	Number of Positions Loaded	Current Rating (Amps)	Connector Type	Number of Rows	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Overall Contact Length
Samtec Inc. TMS-140-02-G-D	Gold	10 çin	0.25 çm	3 µin	0.076 µm	0.1 in	2.54 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C	0.12 in	3.05 mm	0.1 in	2.54 mm	0.05 in	1.27 mm	2.54 mm	0.1 in	Black	Liquid Crystal Polymer (LCP)	Gold	Phosphor Bronze	80	Square	Push-Pull	Male Pin	All	5 A	Header	2	Through Hole
Samtec Inc. TMS-140-02-T-S-RA
Samtec Inc. TMS-140-21-G-S	Gold	10 çin	0.25 çm	3 µin	0.076 µm	0.1 in	2.54 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C				5.84 mm	0.05 in	1.27 mm			Black	Liquid Crystal Polymer (LCP)	Gold	Phosphor Bronze	40	Square	Push-Pull	Male Pin	All	5 A	Header	1	Through Hole	4.45 mm	0.175 in	0.23 in	12.83 mm	0.505 in
Samtec Inc. TMS-140-03-H-D-RA	Gold	30 Áin	0.76 Ám	3 µin	0.076 µm	0.197 in	5 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C	0.14 in	3.56 mm	0.125 in	3.18 mm	0.05 in	1.27 mm	2.54 mm	0.1 in	Black	Liquid Crystal Polymer (LCP)	Gold	Phosphor Bronze	80	Square	Push-Pull	Male Pin	All	5 A	Header	2	Through Hole Right Angle
Samtec Inc. TMS-140-01-S-D
Samtec Inc. TMS-140-02-S-S	Gold	30 Áin	0.76 Ám			0.1 in	2.54 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C	0.12 in	3.05 mm	0.1 in	2.54 mm	0.05 in	1.27 mm			Black	Liquid Crystal Polymer (LCP)	Tin	Phosphor Bronze	40	Square	Push-Pull	Male Pin	All	5 A	Header	1	Through Hole
Samtec Inc. TMS-140-51-T-D						0.1 in	2.54 mm	UL94 V-0	Solder	Unshrouded	-55 °C	105 ░C	0.12 in	3.05 mm	0.19 "	4.83 mm	0.05 in	1.27 mm	2.54 mm	0.1 in	Black	Liquid Crystal Polymer (LCP)	Tin	Phosphor Bronze	80	Square	Push-Pull	Male Pin	All	5 A	Header	2	Through Hole				10.41 mm	0.41 in
Samtec Inc. TMS-140-57-G-S	Gold	10 çin	0.25 çm	3 µin	0.076 µm	0.1 in	2.54 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C	0.12 in	3.05 mm		0.43 in	0.05 in	1.27 mm			Black	Liquid Crystal Polymer (LCP)	Gold	Phosphor Bronze	40	Square	Push-Pull	Male Pin	All	5 A	Header	1	Through Hole				0.65 in		10.92 mm	16.51 mm
Samtec Inc. TMS-140-02-S-D-RA	Gold	30 Áin	0.76 Ám			0.197 in	5 mm	UL94 V-0	Solder	Unshrouded	-55 °C	125 °C	0.14 in	3.56 mm	0.1 in	2.54 mm	0.05 in	1.27 mm	2.54 mm	0.1 in	Black	Liquid Crystal Polymer (LCP)	Tin	Phosphor Bronze	80	Square	Push-Pull	Male Pin	All	5 A	Header	2	Through Hole Right Angle
Samtec Inc. TMS-140-03-G-D-RA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.81
		10	$ 9.07
		25	$ 8.57
		50	$ 8.26
		100	$ 7.70

Description

General part information

TMS-140 Series

Connector Header Through Hole, Right Angle 80 position 0.050" (1.27mm)
