845-016-523-201

Active

EDAC Inc.

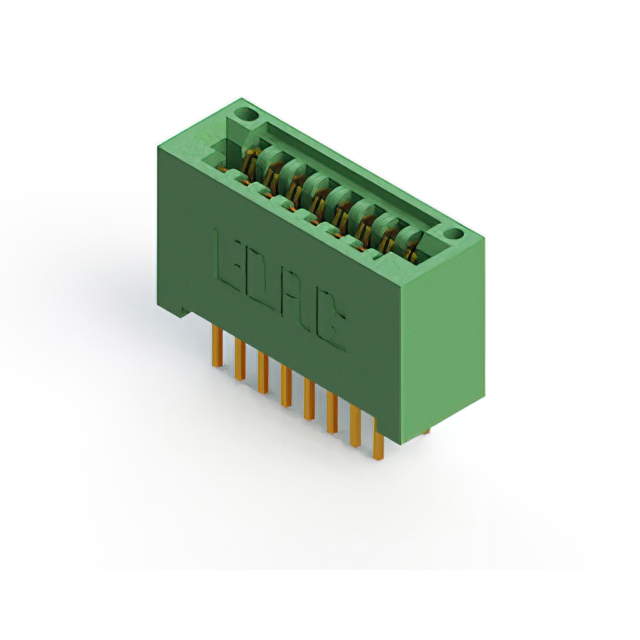

CONN EDGE DUAL FMALE 16POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-016-523-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 16POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-016-523-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-016 Series

...

Part	Number of Positions	Contact Finish	Mounting Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows	Gender	Termination Rows	Material - Insulation	Termination	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 845-016-523-201	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge
EDAC Inc. 845-016-542-203	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 845-016-544-204	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 845-016-541-603	16	Gold	Through Hole	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	1	Female	1	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in				Non Specified - Single Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	16
EDAC Inc. 845-016-521-803	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 845-016-541-803	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 845-016-559-202	16	Gold	Through Hole Right Angle	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 845-016-544-203	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 845-016-541-507	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-016-558-608	16	Gold	Through Hole Right Angle	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	1	Female	1	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in				Non Specified - Single Edge		4-40 Threaded Insert Top Mount Opening		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 38.45
Newark	Each	1	$ 50.86
		100	$ 43.23
		250	$ 40.36
		500	$ 37.77
		1000	$ 30.38

Description

General part information

845-016 Series

16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
