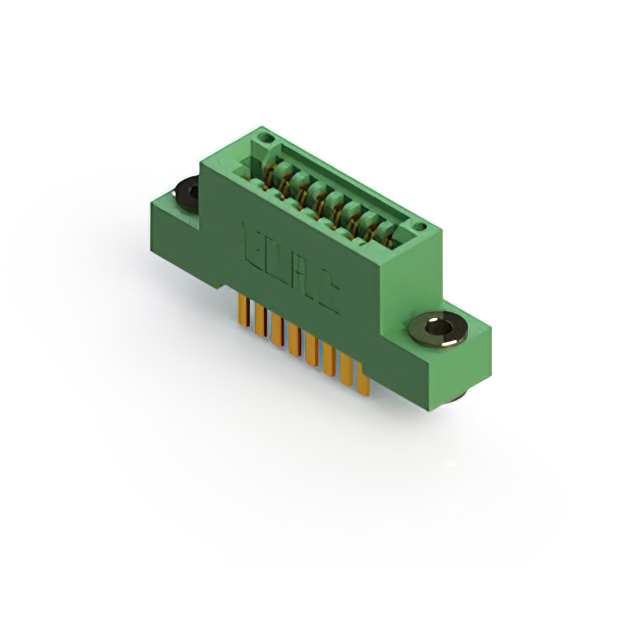

845-016-544-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 16POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-016-544-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 16POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-016-544-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

845-016 Series

...

Part	Number of Positions	Contact Finish	Mounting Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows	Gender	Termination Rows	Material - Insulation	Termination	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 845-016-523-201	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge
EDAC Inc. 845-016-542-203	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 845-016-544-204	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 845-016-541-603	16	Gold	Through Hole	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	1	Female	1	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in				Non Specified - Single Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	16
EDAC Inc. 845-016-521-803	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 845-016-541-803	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm
EDAC Inc. 845-016-559-202	16	Gold	Through Hole Right Angle	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 845-016-544-203	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 845-016-541-507	16	Gold	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	2	Female	2	Diallyl Phthalate (DAP)	Wire Wrap	2.54 mm	0.1 in	8	8	8	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-016-558-608	16	Gold	Through Hole Right Angle	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	Copper Alloy	10 Áin	0.25 Ám	Cantilever	1	Female	1	Diallyl Phthalate (DAP)	Solder	2.54 mm	0.1 in				Non Specified - Single Edge		4-40 Threaded Insert Top Mount Opening		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 65.91

Description

General part information

845-016 Series

16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
