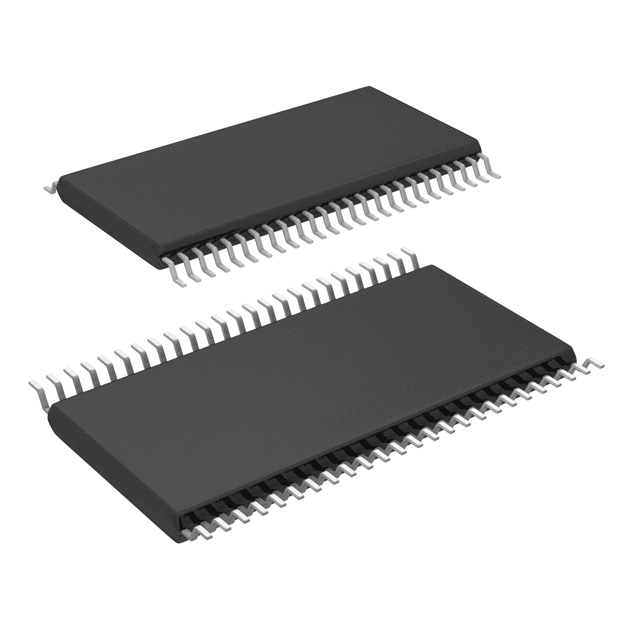

COP8SCR9IMT8
ActiveTexas Instruments
IC MCU 8BIT 32KB FLASH 48TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
COP8SCR9IMT8
ActiveTexas Instruments
IC MCU 8BIT 32KB FLASH 48TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | COP8SCR9IMT8 | COP8SCR9 Series |
|---|---|---|
| Connectivity [custom] | UART/USART, Microwire/Plus (SPI) | UART/USART, Microwire/Plus (SPI) |
| Core Processor | COP8 | COP8 |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 39 | 37 - 59 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 48-TFSOP | 68-LCC (J-Lead), 48-TFSOP, 44-LCC (J-Lead), 56-TFSOP |
| Package / Case | 0.24 in | 0.24 in |
| Package / Case | - | 6.1 mm |
| Package / Case | - | 0.24 " |
| Package / Case [y] | 6.1 mm | 6.1 mm |
| Program Memory Size | 32 KB | 32 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 1K x 8 | 1K x 8 |
| Speed | 20 MHz | 20 MHz |
| Supplier Device Package | 48-TSSOP | 68-PLCC, 48-TSSOP, 44-PLCC, 56-TSSOP |
| Supplier Device Package | - | 16.58 - 24.23 |
| Supplier Device Package | - | 16.58 - 24.23 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V | 2.7 - 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
COP8SCR9 Series
IC MCU 8BIT 32KB FLASH 68PLCC
| Part | Mounting Type | Connectivity [custom] | Core Processor | RAM Size | Package / Case | Speed | Number of I/O | Program Memory Type | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Program Memory Size | Oscillator Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Core Size | Package / Case [y] | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments COP8SCR9LVA8 | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 68-LCC (J-Lead) | 20 MHz | 59 | FLASH | 24.23 | 24.23 | 68-PLCC | 85 °C | -40 °C | 32 KB | Internal | 2.7 V | 5.5 V | 8-Bit | ||||
Texas Instruments COP8SCR9IMT8 | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 48-TFSOP | 20 MHz | 39 | FLASH | 48-TSSOP | 85 °C | -40 °C | 32 KB | Internal | 2.7 V | 5.5 V | 8-Bit | 6.1 mm | 0.24 in | ||||
Texas Instruments COP8SCR9HVA8 | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 44-LCC (J-Lead) | 20 MHz | 37 | FLASH | 16.58 | 16.58 | 44-PLCC | 85 °C | -40 °C | 32 KB | Internal | 2.7 V | 5.5 V | 8-Bit | ||||
Texas Instruments COP8SCR9HVA8/63SN | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 44-LCC (J-Lead) | 20 MHz | 37 | FLASH | 16.58 | 16.58 | 44-PLCC | 85 °C | -40 °C | 32 KB | Internal | 2.7 V | 5.5 V | 8-Bit | ||||
Texas Instruments COP8SCR9HVA8/NOPB | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 44-LCC (J-Lead) | 20 MHz | 37 | FLASH | 16.58 | 16.58 | 44-PLCC | 85 °C | -40 °C | 32 KB | Internal | 2.7 V | 5.5 V | 8-Bit | ||||
Texas Instruments COP8SCR9KMT7 | Surface Mount | Microwire/Plus (SPI), UART/USART | COP8 | 1K x 8 | 56-TFSOP | 20 MHz | 49 | FLASH | 56-TSSOP | 125 °C | -40 °C | 32 KB | Internal | 4.5 V | 5.5 V | 8-Bit | 6.1 mm | 0.24 " |
Description
General part information
COP8SCR9 Series
COP8 COP8™ 8S Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) FLASH 48-TSSOP
Documents
Technical documentation and resources
No documents available
