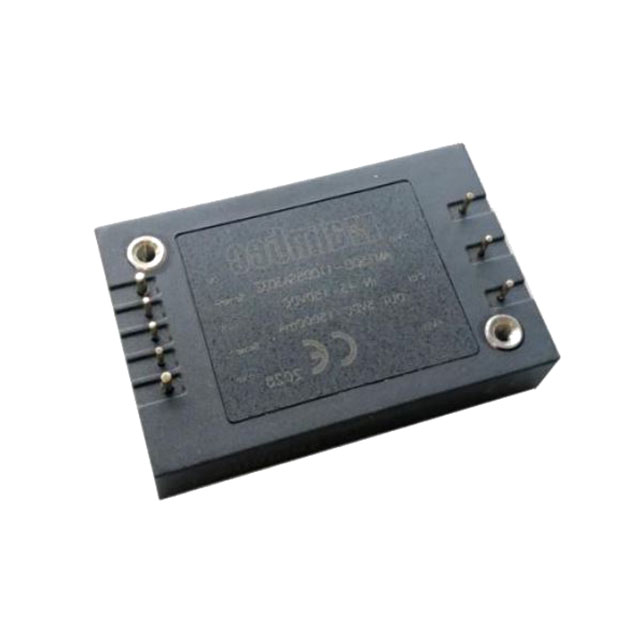

AM100QB-11005SA30JZ-B

Active

aimtec

DC DC CONVERTER 5V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM100QB-11005SA30JZ-B

Active

aimtec

DC DC CONVERTER 5V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM100QB-11005SA30JZ-B	AM100Q Series

Applications	Railway	ITE (Commercial), Industrial, Railway
Current - Output (Max) [Max]	20 A	2.083 - 22.727 A
Efficiency	88 %	86 - 91 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Remote Sense, Heatsink, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	100 W	75 - 100 W
Size / Dimension [x]	2.39 "	2.39 - 2.43 in
Size / Dimension [x]	60.8 mm	60.8 - 61.8 mm
Size / Dimension [y]	1.54 "	1.54 - 1.58 in
Size / Dimension [y]	39.2 mm	39.2 - 40.2 mm
Size / Dimension [z]	0.5 in	0.5 - 1.21 in
Size / Dimension [z]	12.7 mm	12.7 - 27.8 mm
Standard Number	50155	50155
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	36 - 160 V
Voltage - Input (Min) [Min]	43 V	9 - 43 V
Voltage - Isolation	3000 V	2250 - 3000 VDC
Voltage - Output 1	5 V	3.3 - 48 V

AM100Q Series

DC DC CONVERTER 5V 100W

Part	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Applications	Supplier Device Package	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Features	Current - Output (Max) [Max]	Standard Number
aimtec AM100QB-2405SH22-NZ-M	2250 VDC	1	9 V	Isolated Module	85 °C	-40 °C	5 V	ITE (Commercial)	Quarter Brick	0.5 in	40.2 mm	1.58 in	2.43 in	12.7 mm	61.8 mm	100 W	Quarter Brick	36 V	Through Hole	89 %	Remote On/Off	20 A
aimtec AM100QB-11048SA30JZ-K-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	48 V	Industrial, Railway	Quarter Brick	1.21 "	39.2 mm	1.54 "	2.39 "	27.8 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Heatsink, Remote On/Off, Remote Sense	2.083 A
aimtec AM100QB-11015SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	15 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	89 %	Adjustable Output, Remote On/Off, Remote Sense	6.667 A	50155
aimtec AM100QB-11005SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	5 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Remote On/Off, Remote Sense	20 A	50155
aimtec AM100QB-11048SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	48 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Remote On/Off, Remote Sense	2.083 A	50155
aimtec AM100QB-11024SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	24 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	91 %	Adjustable Output, Remote On/Off, Remote Sense	4.167 A	50155
aimtec AM100QB-11003SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	3.3 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	75 W	Quarter Brick	160 V	Through Hole	86 %	Adjustable Output, Remote On/Off, Remote Sense	22.727 A	50155

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.32
		5	$ 112.03
		10	$ 109.79
		25	$ 107.60
		50	$ 105.45
		75	$ 103.34
		100	$ 101.27

Description

General part information

AM100Q Series

Isolated Module DC DC Converter 1 Output 5V 20A 43V - 160V Input
