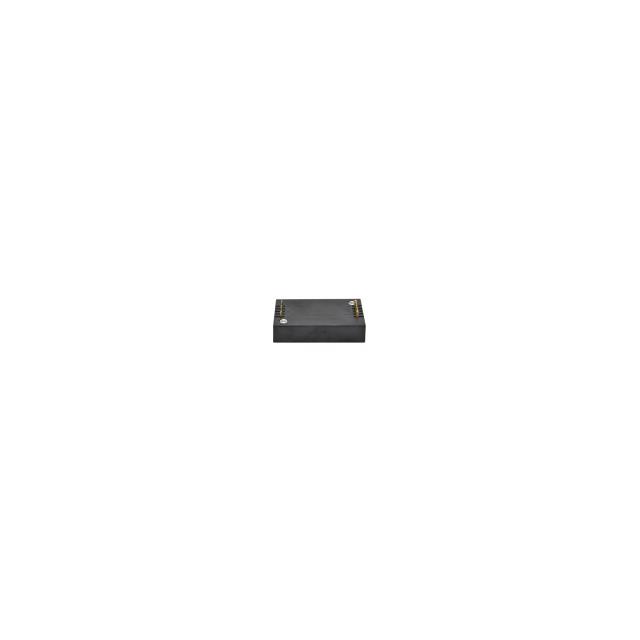

AM100QB-2405SH22-NZ-M

Active

aimtec

DC DC CONVERTER 5V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM100QB-2405SH22-NZ-M

Active

aimtec

DC DC CONVERTER 5V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AM100Q Series

Isolated Module DC DC Converter 1 Output 5V 20A 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM100QB-2405SH22-NZ-M	AM100Q Series

Applications	ITE (Commercial)	ITE (Commercial), Industrial, Railway
Current - Output (Max) [Max]	20 A	2.083 - 22.727 A
Efficiency	89 %	86 - 91 %
Features	Remote On/Off	Remote On/Off, Remote Sense, Heatsink, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	100 W	75 - 100 W
Size / Dimension [x]	2.43 in	2.39 - 2.43 in
Size / Dimension [x]	61.8 mm	60.8 - 61.8 mm
Size / Dimension [y]	40.2 mm	39.2 - 40.2 mm
Size / Dimension [y]	1.58 in	1.54 - 1.58 in
Size / Dimension [z]	0.5 in	0.5 - 1.21 in
Size / Dimension [z]	12.7 mm	12.7 - 27.8 mm
Standard Number	-	50155
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 - 160 V
Voltage - Input (Min) [Min]	9 V	9 - 43 V
Voltage - Isolation	2250 VDC	2250 - 3000 VDC
Voltage - Output 1	5 V	3.3 - 48 V

AM100Q Series

DC DC CONVERTER 5V 100W

Part	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Applications	Supplier Device Package	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Features	Current - Output (Max) [Max]	Standard Number
aimtec AM100QB-2405SH22-NZ-M	2250 VDC	1	9 V	Isolated Module	85 °C	-40 °C	5 V	ITE (Commercial)	Quarter Brick	0.5 in	40.2 mm	1.58 in	2.43 in	12.7 mm	61.8 mm	100 W	Quarter Brick	36 V	Through Hole	89 %	Remote On/Off	20 A
aimtec AM100QB-11048SA30JZ-K-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	48 V	Industrial, Railway	Quarter Brick	1.21 "	39.2 mm	1.54 "	2.39 "	27.8 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Heatsink, Remote On/Off, Remote Sense	2.083 A
aimtec AM100QB-11015SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	15 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	89 %	Adjustable Output, Remote On/Off, Remote Sense	6.667 A	50155
aimtec AM100QB-11005SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	5 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Remote On/Off, Remote Sense	20 A	50155
aimtec AM100QB-11048SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	48 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	88 %	Adjustable Output, Remote On/Off, Remote Sense	2.083 A	50155
aimtec AM100QB-11024SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	24 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	100 W	Quarter Brick	160 V	Through Hole	91 %	Adjustable Output, Remote On/Off, Remote Sense	4.167 A	50155
aimtec AM100QB-11003SA30JZ-B	3000 V	1	43 V	Isolated Module	105 ░C	-40 °C	3.3 V	Railway	Quarter Brick	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	75 W	Quarter Brick	160 V	Through Hole	86 %	Adjustable Output, Remote On/Off, Remote Sense	22.727 A	50155
