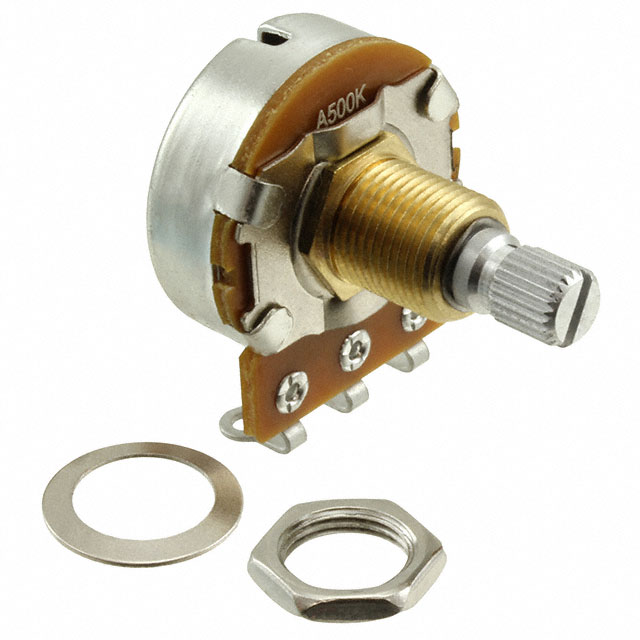

PDB241-SOTL1-504A3
ObsoleteBourns Inc.
POT 500K OHM 1/4W CARBON LOG
Deep-Dive with AI
Search across all available documentation for this part.
PDB241-SOTL1-504A3
ObsoleteBourns Inc.
POT 500K OHM 1/4W CARBON LOG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDB241-SOTL1-504A3 |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Type | Knurled and Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread [custom] | 0.75 mm |
| Bushing Thread [diameter] | M8 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 500 kOhms |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [diameter] | 0.945 in |
| Size - Body [diameter] | 24 mm |
| Taper | Logarithmic |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
PDB241 Series
| Part | Resistance (Ohms) | Tolerance | Bushing Thread | Power (Watts) | Power (Watts) | Number of Gangs | Actuator Type | Number of Turns | Actuator Length | Actuator Length [z] | Adjustment Type | Termination Style | Taper | Resistive Material | Size - Body [diameter] | Size - Body [diameter] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Built in Switch | Rotation | Bushing Thread [custom] | Bushing Thread [diameter] | Actuator Length [z] | Resistance (Ohms) | Actuator Diameter | Actuator Length [x] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 250k | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Knurled and Slotted | 1 | 19 mm | 0.748 in | User Defined | Solder Lug | Linear | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | ||||||||
Bourns Inc. | 250k | 20 % | 0.25 W | 250 mW | 1 | Round | 1 | 0.787 in | User Defined | Solder Lug | Logarithmic | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | 0.75 mm | M8 | 20 mm | |||||||
Bourns Inc. | 1M | 20 % | 0.25 W | 250 mW | 1 | Round | 1 | 0.787 in | User Defined | Solder Lug | Logarithmic | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | 0.75 mm | M8 | 20 mm | |||||||
Bourns Inc. | 20 % | 0.5 W | 0.5 W | 1 | Knurled and Slotted | 1 | 0.787 in | User Defined | Solder Lug | Linear | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | 0.75 mm | M8 | 20 mm | 100 kOhms | |||||||
Bourns Inc. | 25k | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Round | 1 | 19 mm | 0.748 in | User Defined | Solder Lug | Linear | Carbon | 0.945 in | 24 mm | 0.25 in | 300 ░ | 6.35 mm | ||||||||
Bourns Inc. | 250k | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Round | 1 | 19 mm | 0.748 in | User Defined | Solder Lug | Linear | Carbon | 0.969 in | 24.6 mm | 0.25 in | 300 ░ | 6.35 mm | ||||||||
Bourns Inc. | 20 % | 0.25 W | 250 mW | 1 | Knurled and Slotted | 1 | User Defined | Solder Lug | Logarithmic | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | 0.75 mm | M8 | 500 kOhms | |||||||||
Bourns Inc. | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Knurled and Slotted | 1 | User Defined | Solder Lug | Logarithmic | Carbon | 0.969 in | 24.6 mm | 0.236 in | 6 mm | 300 ░ | 500 kOhms | 1.083 in | 27.5 mm | ||||||||
Bourns Inc. | 300k | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Knurled and Slotted | 1 | 19 mm | 0.748 in | User Defined | Solder Lug | Linear | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | ||||||||
Bourns Inc. | 300k | 20 % | 3/8-32 | 0.25 W | 250 mW | 1 | Knurled and Slotted | 1 | User Defined | Solder Lug | Linear | Carbon | 0.945 in | 24 mm | 0.236 in | 6 mm | 300 ░ | 1.083 in | 27.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PDB241 Series
500k Ohm 1 Gang Logarithmic Panel Mount Potentiometer None 1.0 Kierros Carbon 0.25W, 1/4W Solder Lug
