PDB241-GTR02-253B0

Active

Bourns Inc.

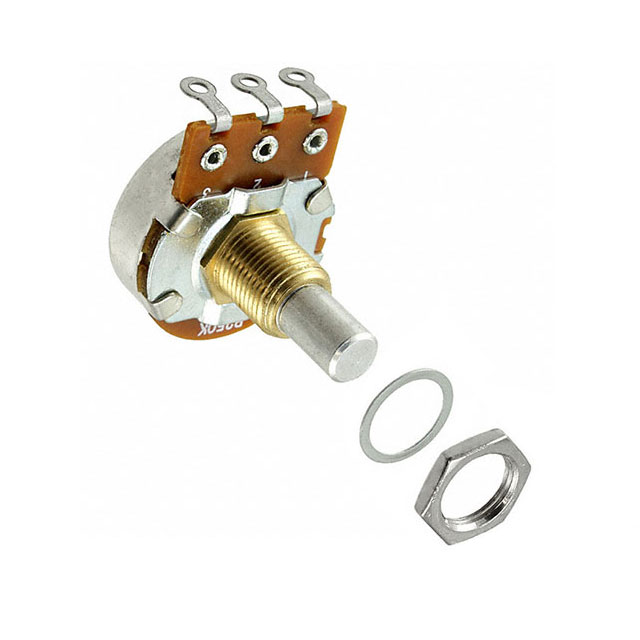

POT 25K OHM 1/4W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB241-GTR02-253B0

Active

Bourns Inc.

POT 25K OHM 1/4W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB241-GTR02-253B0

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length	19 mm
Actuator Length [z]	0.748 in
Actuator Type	Round
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance (Ohms)	25k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [diameter]	0.945 in
Size - Body [diameter]	24 mm
Taper	Linear
Termination Style	Solder Lug
Tolerance	20 %

PDB241 Series

Part	Resistance (Ohms)	Tolerance	Bushing Thread	Power (Watts)	Power (Watts)	Number of Gangs	Actuator Type	Number of Turns	Actuator Length	Actuator Length [z]	Adjustment Type	Termination Style	Taper	Resistive Material	Size - Body [diameter]	Size - Body [diameter]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Bushing Thread [custom]	Bushing Thread [diameter]	Actuator Length [z]	Resistance (Ohms)	Actuator Diameter	Actuator Length [x]	Actuator Length [x]
Bourns Inc. PDB241-GTR01-254B0	250k	20 %	3/8-32	0.25 W	250 mW	1	Knurled and Slotted	1	19 mm	0.748 in	User Defined	Solder Lug	Linear	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░
Bourns Inc. PDB241-S420P-254A2	250k	20 %		0.25 W	250 mW	1	Round	1		0.787 in	User Defined	Solder Lug	Logarithmic	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░	0.75 mm	M8	20 mm
Bourns Inc. PDB241-E420P-105A2	1M	20 %		0.25 W	250 mW	1	Round	1		0.787 in	User Defined	Solder Lug	Logarithmic	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░	0.75 mm	M8	20 mm
Bourns Inc. PDB241-E420K-104B0		20 %		0.5 W	0.5 W	1	Knurled and Slotted	1		0.787 in	User Defined	Solder Lug	Linear	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░	0.75 mm	M8	20 mm	100 kOhms
Bourns Inc. PDB241-GTR02-253B0	25k	20 %	3/8-32	0.25 W	250 mW	1	Round	1	19 mm	0.748 in	User Defined	Solder Lug	Linear	Carbon	0.945 in	24 mm	0.25 in		300 ░					6.35 mm
Bourns Inc. PDB241-GNL02-254B0	250k	20 %	3/8-32	0.25 W	250 mW	1	Round	1	19 mm	0.748 in	User Defined	Solder Lug	Linear	Carbon	0.969 in	24.6 mm	0.25 in		300 ░					6.35 mm
Bourns Inc. PDB241-SOTL1-504A3		20 %		0.25 W	250 mW	1	Knurled and Slotted	1			User Defined	Solder Lug	Logarithmic	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░	0.75 mm	M8		500 kOhms
Bourns Inc. PDB241-GNL03-504A2		20 %	3/8-32	0.25 W	250 mW	1	Knurled and Slotted	1			User Defined	Solder Lug	Logarithmic	Carbon	0.969 in	24.6 mm	0.236 in	6 mm	300 ░				500 kOhms		1.083 in	27.5 mm
Bourns Inc. PDB241-GTR01-304B0	300k	20 %	3/8-32	0.25 W	250 mW	1	Knurled and Slotted	1	19 mm	0.748 in	User Defined	Solder Lug	Linear	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░
Bourns Inc. PDB241-GTR03-304B0	300k	20 %	3/8-32	0.25 W	250 mW	1	Knurled and Slotted	1			User Defined	Solder Lug	Linear	Carbon	0.945 in	24 mm	0.236 in	6 mm	300 ░						1.083 in	27.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.31
		10	$ 3.77
		25	$ 3.37
		40	$ 3.16
		100	$ 3.10
		300	$ 2.96
		500	$ 2.42
		1000	$ 2.09
		4900	$ 1.88

Description

General part information

PDB241 Series

25k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.25W, 1/4W Solder Lug
