BQ25792EVM
ActiveEVAL BOARD FOR BQ25792
Deep-Dive with AI
Search across all available documentation for this part.

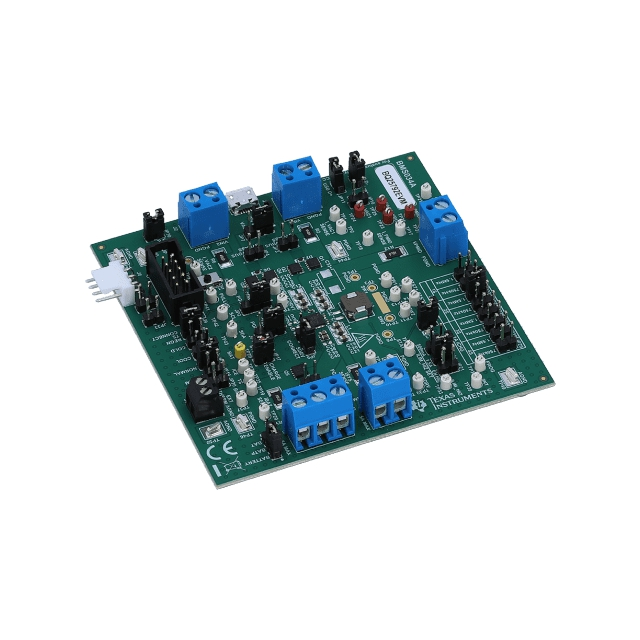

BQ25792EVM
ActiveEVAL BOARD FOR BQ25792
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25792EVM | BQ25792 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 18.8 V |
| Charge Current - Max | - | 5 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | 29-VFQFN |
| Primary Attributes | Buck-Boost Battery Charger | Buck-Boost Battery Charger |
| Programmable Features | - | Current, Timer, Voltage |
| Secondary Attributes | On-Board Test Points | On-Board Test Points |
| Supplier Device Package | - | 29-VQFN-HR (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25792 | BQ25792 |
| Voltage - Supply (Max) | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 178.80 | |
| Digikey | Box | 1 | $ 178.80 | |
| Mouser Electronics | N/A | 1 | $ 198.16 | |
BQ25792 Series
I2C controlled, 5-A, 1-4 cell buck-boost charger with dual-input selector and USB PD 3.0 OTG output
| Part | Charge Current - Max [Max] | Battery Pack Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Interface | Current - Charging | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Package / Case | Supplier Device Package | Voltage - Supply (Max) [Max] | Fault Protection | Battery Chemistry | Programmable Features | Contents | Primary Attributes | Secondary Attributes | Type | Function | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25792RQMR | 5 A | 18.8 V | -40 °C | 85 °C | Surface Mount | I2C | Constant - Programmable | 4 | 1 | 29-VFQFN | 29-VQFN-HR (4x4) | 24 V | Over Current, Over Voltage, Short Circuit | Lithium Ion/Polymer | Current, Timer, Voltage | ||||||
Texas Instruments BQ25792EVM | Board(s) | Buck-Boost Battery Charger | On-Board Test Points | Power Management | Battery Charger | BQ25792 |
Description
General part information
BQ25792 Series
The BQ25792 is a fully integrated switch-mode buck -boost charger for 1-4 cell Li-ion batteries and Li-polymer batteries. The integration includes 4 switching MOSFETs (Q1, Q2, Q3, Q4), input and charging current sensing circuits, the battery FET (QBAT) and all the loop compensation of the buck-boost converter. It uses NVDC power path management, regulating the system slightly above the battery voltage without dropping below a configurable minimum system voltage. When system power exceeds the input source rating, battery supplement mode supports the system without overloading the input source. BQ25792 supports the full input and output (OTG) voltage ranges for USB Type-C™ and USB power delivery (USB-PD) applications.
The BQ25792 is a fully integrated switch-mode buck -boost charger for 1-4 cell Li-ion batteries and Li-polymer batteries. The integration includes 4 switching MOSFETs (Q1, Q2, Q3, Q4), input and charging current sensing circuits, the battery FET (QBAT) and all the loop compensation of the buck-boost converter. It uses NVDC power path management, regulating the system slightly above the battery voltage without dropping below a configurable minimum system voltage. When system power exceeds the input source rating, battery supplement mode supports the system without overloading the input source. BQ25792 supports the full input and output (OTG) voltage ranges for USB Type-C™ and USB power delivery (USB-PD) applications.
