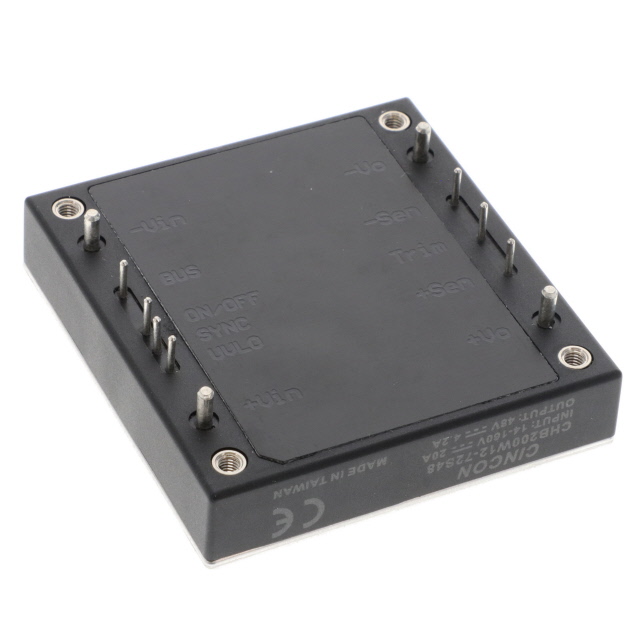

CHB200W12-72S48

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 200W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Control Features	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Supplier Device Package	Standard Number
Cincon Electronics Co. LTD CHB200W12-72S48	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	100 °C	-40 °C	ITE (Commercial) Railway	1	4.2 A	Half Brick	200 W	3000 V	Through Hole	90 %	160 V	Active High Enable	CB CE cURus	14 V	48 V	Isolated Module	Half Brick
Cincon Electronics Co. LTD CHB200W12-72S15	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	100 °C	-40 °C	ITE (Commercial) Railway	1	13.5 A	Half Brick	200 W	3000 V	Through Hole	90 %	160 V	Active High Enable	CB CE cURus	14 V	15 V	Isolated Module	Half Brick
Cincon Electronics Co. LTD CHB200W12-72S15-CMFD	6.98 in	1.56 in	3.09 in	39.6 mm	78.5 mm	177.3 mm	95 °C	-40 °C	ITE (Commercial) Railway	1	13.5 A		200 W	4.2 kV	Chassis Mount		160 V		CE UKCA	14 V	15 V	Enclosed		62368-1
Cincon Electronics Co. LTD CHB200W12-72S12N-CMFD+HS	6.98 in	2.64 in	3.8 "	67.1 mm	96.5 mm	177.3 mm	95 °C	-40 °C	ITE (Commercial) Railway	1	16.7 A		200 W	4.2 kV	Chassis Mount		160 V		CE UKCA	14 V	12 V	Enclosed		62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 48V 4.2A 14V - 160V Input
