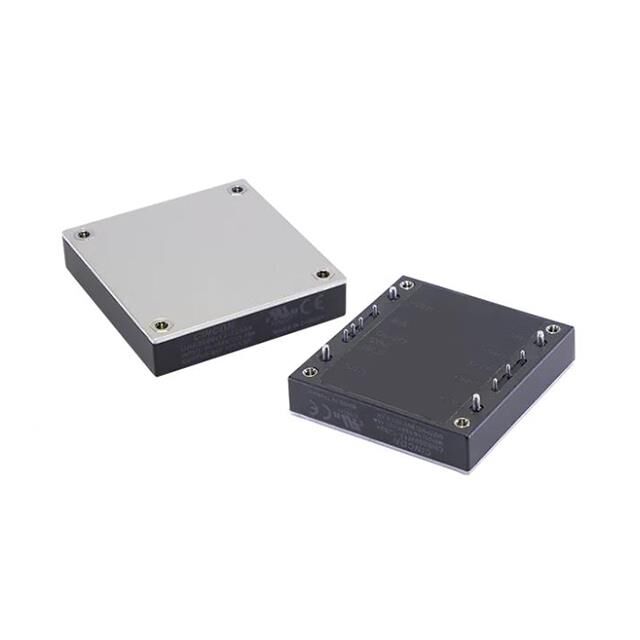

CHB200W12-72S15-CMFD

Active

Cincon Electronics Co. LTD

CHASSIS MOUNT, 200W, 12:1 14-160

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

CHASSIS MOUNT, 200W, 12:1 14-160

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Control Features	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Supplier Device Package	Standard Number
Cincon Electronics Co. LTD CHB200W12-72S48	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	100 °C	-40 °C	ITE (Commercial) Railway	1	4.2 A	Half Brick	200 W	3000 V	Through Hole	90 %	160 V	Active High Enable	CB CE cURus	14 V	48 V	Isolated Module	Half Brick
Cincon Electronics Co. LTD CHB200W12-72S15	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	100 °C	-40 °C	ITE (Commercial) Railway	1	13.5 A	Half Brick	200 W	3000 V	Through Hole	90 %	160 V	Active High Enable	CB CE cURus	14 V	15 V	Isolated Module	Half Brick
Cincon Electronics Co. LTD CHB200W12-72S15-CMFD	6.98 in	1.56 in	3.09 in	39.6 mm	78.5 mm	177.3 mm	95 °C	-40 °C	ITE (Commercial) Railway	1	13.5 A		200 W	4.2 kV	Chassis Mount		160 V		CE UKCA	14 V	15 V	Enclosed		62368-1
Cincon Electronics Co. LTD CHB200W12-72S12N-CMFD+HS	6.98 in	2.64 in	3.8 "	67.1 mm	96.5 mm	177.3 mm	95 °C	-40 °C	ITE (Commercial) Railway	1	16.7 A		200 W	4.2 kV	Chassis Mount		160 V		CE UKCA	14 V	12 V	Enclosed		62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 277.10

General part information

Enclosed DC DC Converter 1 Output 15V 13.5A 160V Input
