3421-7620

Active

3M (TC)

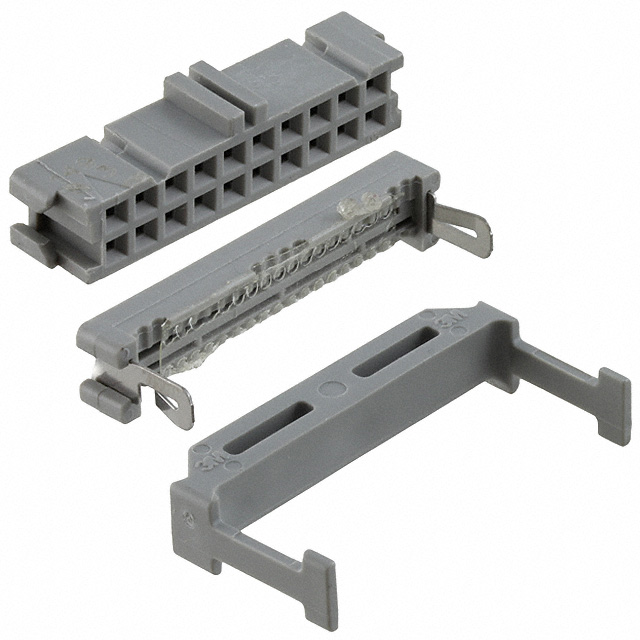

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3421-7620

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3421-7620

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Closed End, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3421 Series

Part	Mounting Type	Wire Type	Cable Termination	Color	Number of Rows	Contact Finish	Number of Positions	Features	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3421-7620	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Closed End Polarizing Key Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-6600	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket	26 AWG	28 AWG	Solid Stranded
3M (TC) 3421-6620	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-G600	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket	26 AWG	28 AWG	Solid Stranded
3M (TC) 3421-7000	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Closed End	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-6020	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.66
		10	$ 5.14
		25	$ 4.87
		50	$ 4.76
		100	$ 4.53
		300	$ 3.96
		600	$ 3.85
		1200	$ 3.29
		2700	$ 3.06
Newark	Each	250	$ 3.88
		500	$ 3.77
		1000	$ 3.20

Description

General part information

3421 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
