3421-7000

Active

3M (TC)

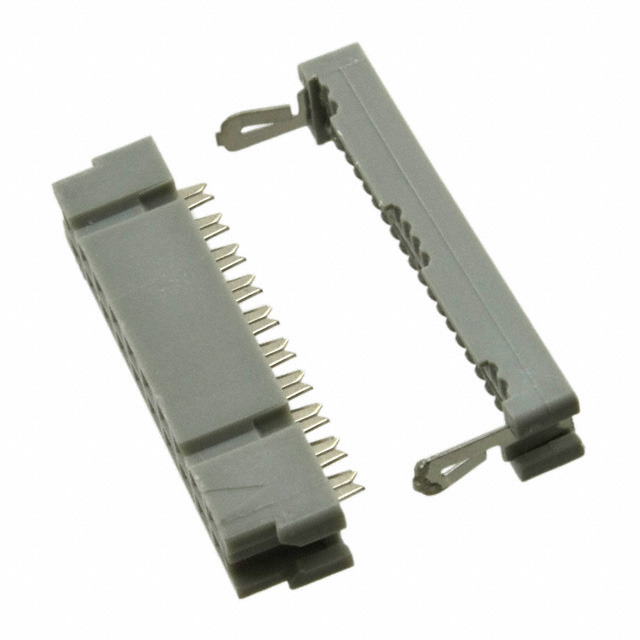

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Wire Type	Cable Termination	Color	Number of Rows	Contact Finish	Number of Positions	Features	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3421-7620	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Closed End Polarizing Key Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-6600	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket	26 AWG	28 AWG	Solid Stranded
3M (TC) 3421-6620	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-G600	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket	26 AWG	28 AWG	Solid Stranded
3M (TC) 3421-7000	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Closed End	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket
3M (TC) 3421-6020	Free Hanging (In-Line)	Ribbon Cable	IDC	Gray	2	Gold	20	Feed Through Strain Relief	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
