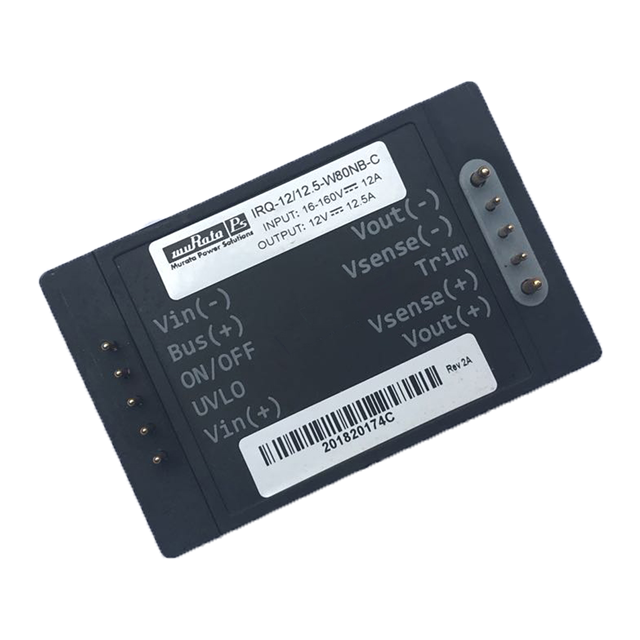

IRQ-12/12.5-W80PB-C

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 12V, 12.5A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

IRQ-12/12.5-W80PB-C

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 12V, 12.5A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 127.39
Newark	Each	1	$ 221.02
		5	$ 218.60
		10	$ 215.73
		25	$ 213.44
		50	$ 208.83

Description

General part information

IRQ-12 Series

Isolated Module DC DC Converter 1 Output 12V 12.5A 16V - 160V Input

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IRQ-12/12.5-W80PB-C	IRQ-12 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Approval Agency	UL, CSA, CE, cURus	cURus, CSA, UL, UL, CSA, CE, cURus
Control Features	Active High, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	12.5 A	8.3 - 12.5 A
Efficiency	89 %	89 %
Features	Remote On/Off, Adjustable Output, Baseplate, Remote Sense	Remote On/Off, Adjustable Output, Baseplate, Remote Sense, OCP, UVLO, OTP, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick, 1/4 Brick, 8-DIP Module
Power (Watts)	150 W	100 - 150 W
Size / Dimension	2.41 in, 0.53 in, 1.56 in	0.53 - 2.41 in
Size / Dimension	13.5 mm, 61.2 mm, 39.6 mm	13.5 - 61.2 mm
Size / Dimension	-	57.9 mm
Size / Dimension	-	2.28 in
Size / Dimension	-	1.45 in
Size / Dimension	-	12.7 mm
Size / Dimension	-	36.8 mm
Size / Dimension	-	0.5 in
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	16 V	16 - 57.6 V
Voltage - Isolation	4.242 kV	4.242 - 3000 kV
Voltage - Output 1	12 V	12 V

IRQ-12 Series

DC-DC CONVERTER, 12V, 12.5A ROHS COMPLIANT: YES

Part	Features	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Control Features	Efficiency	Current - Output (Max) [Max]	Size / Dimension	Size / Dimension	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Approval Agency	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. IRQ-12/12.5-W80NB-C	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C	Quarter Brick	Isolated Module	Active Low, Enable	89 %	12.5 A	0.53 in, 1.56 in, 2.41 in	13.5 mm, 39.6 mm, 61.2 mm	Quarter Brick	16 V	150 W	cURus, CSA, UL	4.242 kV	12 V
Murata Power Solutions Inc. IRQ-12/12.5-W80PB-C	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C	Quarter Brick	Isolated Module	Active High, Enable	89 %	12.5 A	0.53 in, 1.56 in, 2.41 in	13.5 mm, 39.6 mm, 61.2 mm	Quarter Brick	16 V	150 W	CE, CSA, cURus, UL	4.242 kV	12 V
Murata Power Solutions Inc. IRQ-12/8.3-T110NVF-C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C		Isolated Module	Active Low, Enable		8.3 A			1/4 Brick, 8-DIP Module	57.6 V	100 W		3000 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in
Murata Power Solutions Inc. IRQ-12/8.3-T110NF-C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C		Isolated Module	Active Low, Enable		8.3 A			Quarter Brick	57.6 V	100 W		3000 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in
