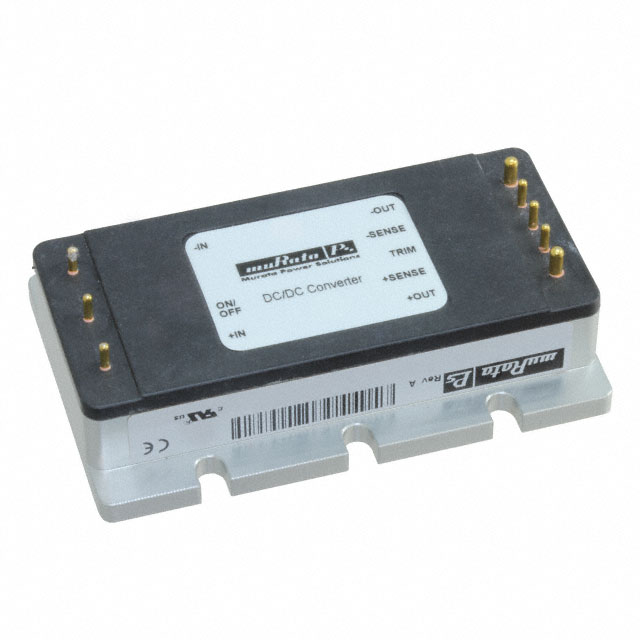

IRQ-12/8.3-T110NF-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IRQ-12/8.3-T110NF-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IRQ-12/8.3-T110NF-C	IRQ-12 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Approval Agency	-	cURus, CSA, UL, UL, CSA, CE, cURus
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	8.3 A	8.3 - 12.5 A
Efficiency	-	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	Remote On/Off, Adjustable Output, Baseplate, Remote Sense, OCP, UVLO, OTP, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick, 1/4 Brick, 8-DIP Module
Power (Watts)	100 W	100 - 150 W
Size / Dimension	-	0.53 - 2.41 in
Size / Dimension	-	13.5 - 61.2 mm
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	0.5 in	0.5 in
Supplier Device Package	-	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	57.6 V	16 - 57.6 V
Voltage - Isolation	3000 V	4.242 - 3000 kV
Voltage - Output 1	12 V	12 V

IRQ-12 Series

DC-DC CONVERTER, 12V, 12.5A ROHS COMPLIANT: YES

Part	Features	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Control Features	Efficiency	Current - Output (Max) [Max]	Size / Dimension	Size / Dimension	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Approval Agency	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. IRQ-12/12.5-W80NB-C	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C	Quarter Brick	Isolated Module	Active Low, Enable	89 %	12.5 A	0.53 in, 1.56 in, 2.41 in	13.5 mm, 39.6 mm, 61.2 mm	Quarter Brick	16 V	150 W	cURus, CSA, UL	4.242 kV	12 V
Murata Power Solutions Inc. IRQ-12/12.5-W80PB-C	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C	Quarter Brick	Isolated Module	Active High, Enable	89 %	12.5 A	0.53 in, 1.56 in, 2.41 in	13.5 mm, 39.6 mm, 61.2 mm	Quarter Brick	16 V	150 W	CE, CSA, cURus, UL	4.242 kV	12 V
Murata Power Solutions Inc. IRQ-12/8.3-T110NVF-C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C		Isolated Module	Active Low, Enable		8.3 A			1/4 Brick, 8-DIP Module	57.6 V	100 W		3000 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in
Murata Power Solutions Inc. IRQ-12/8.3-T110NF-C	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	160 V	1	ITE (Commercial), Railway	Through Hole	85 °C	-40 °C		Isolated Module	Active Low, Enable		8.3 A			Quarter Brick	57.6 V	100 W		3000 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 117.00

Description

General part information

IRQ-12 Series

Isolated Module DC DC Converter 1 Output 12V 8.3A 57.6V - 160V Input
