TPS22908YZTR
Active3.6-V, 1-A, 28-MΩ LOAD SWITCH WITH OUTPUT DISCHARGE
Deep-Dive with AI
Search across all available documentation for this part.
TPS22908YZTR
Active3.6-V, 1-A, 28-MΩ LOAD SWITCH WITH OUTPUT DISCHARGE
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS22908YZTR | TPS22908 Series |
|---|---|---|
| Current - Output (Max) [Max] | 1 A | 1 A |
| Features | Slew Rate Controlled, Load Discharge | Slew Rate Controlled, Load Discharge |
| Function | - | Power Distribution Switch (Load Switch) |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | P-Channel | P-Channel |
| Package / Case | 4-UFBGA, DSBGA | 4-UFBGA, DSBGA |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 28.2 mOhm | 28.2 mOhm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 4-DSBGA | 4-DSBGA |
| Supplier Device Package [x] | 0.9 | 0.9 |
| Supplier Device Package [y] | 0.9 | 0.9 |
| Switch Type | General Purpose | General Purpose |
| Type | - | Power Management |
| Utilized IC / Part | - | TPS22908 |
| Voltage - Load [Max] | 3.6 V | 3.6 V |
| Voltage - Load [Min] | 1 V | 1 V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS22908 Series
MODULE EVAL FOR TPS22908-025
| Part | Function | Supplied Contents | Type | Utilized IC / Part | Input Type | Package / Case | Ratio - Input:Output [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Current - Output (Max) [Max] | Voltage - Supply (Vcc/Vdd) | Switch Type | Mounting Type | Output Configuration | Output Type | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Features | Number of Outputs | Rds On (Typ) | Voltage - Load [Min] | Voltage - Load [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS22908EVM-025TPS22908 Power Distribution Switch (Load Switch) Power Management Evaluation Board | Power Distribution Switch (Load Switch) | Board(s) | Power Management | TPS22908 | ||||||||||||||||||||
Texas Instruments TPS22908YZTRThe TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.

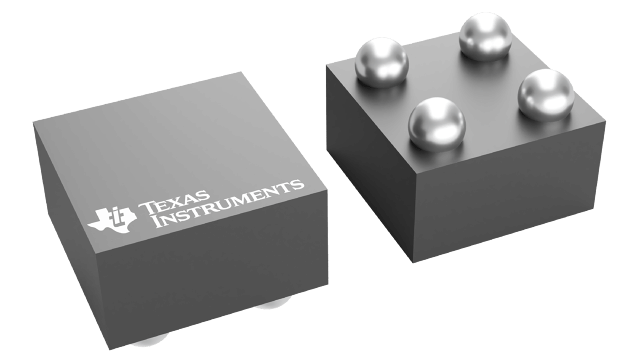

The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
The TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C. | Non-Inverting | 4-UFBGA, DSBGA | 1:1 | 85 °C | -40 °C | On/Off | 1 A | Not Required | General Purpose | Surface Mount | High Side | P-Channel | 0.9 | 0.9 | 4-DSBGA | Load Discharge, Slew Rate Controlled | 1 | 28.2 mOhm | 1 V | 3.6 V | ||||
Texas Instruments TPS22908YZTTThe TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
The TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C. | Non-Inverting | 4-UFBGA, DSBGA | 1:1 | 85 °C | -40 °C | On/Off | 1 A | Not Required | General Purpose | Surface Mount | High Side | P-Channel | 0.9 | 0.9 | 4-DSBGA | Load Discharge, Slew Rate Controlled | 1 | 28.2 mOhm | 1 V | 3.6 V |
Description
General part information
TPS22908 Series
The TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
The TPS22908 is a small, low RONload switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
