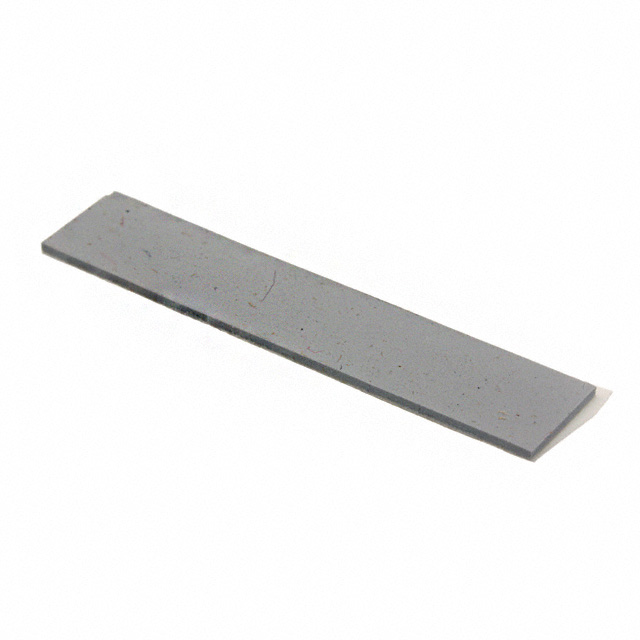

Specification	TG-A486G-50-10-0.8-1A

Adhesive	Adhesive - One Side
Color	Gray
Material	Silicone Elastomer
Outline Length	50 mm
Outline Width	10 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	6 W/m-K, 6.3 W/m-K
Thickness	0.0315 in
Type	Sheet, Conductive Pad

TG-A486G Series

Part	Thermal Conductivity	Shelf Life	Shelf Life Start	Material	Adhesive	Color	Thickness	Type	Outline Width	Outline Length	Shape
t-Global Technology TG-A486G-300-300-3.0-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.12 in	Conductive Pad Sheet	300 mm	300 mm	Square
t-Global Technology TG-A486G-300-300-2.0-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.079 in	Conductive Pad Sheet	300 mm	300 mm	Square
t-Global Technology TG-A486G-58.6-61.6-0.3-1A
t-Global Technology TG-A486G-320-320-0.5-0	6 W/m-K 6.3 W/m-K	24 Months	Date of Purchase	Silicone Elastomer	Tacky - Both Sides	Gray	0.0197 in	Conductive Pad Sheet	320 mm	320 mm	Square
t-Global Technology TG-A486G-240-200-1.0-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.0394 in	Conductive Pad Sheet	200 mm	240 mm	Rectangular
t-Global Technology TG-A486G-100-100-1.0-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.0394 in	Conductive Pad Sheet	100 mm	100 mm	Square
t-Global Technology TG-A486G-20-20-4-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.157 in	Conductive Pad Sheet	20 mm	20 mm	Square
t-Global Technology TG-A486G-48.2-82-1.5-1A
t-Global Technology TG-A486G-50-10-0.8-1A	6 W/m-K 6.3 W/m-K	12 Months	Date of Purchase	Silicone Elastomer	Adhesive - One Side	Gray	0.0315 in	Conductive Pad Sheet	10 mm	50 mm	Rectangular
t-Global Technology TG-A486G-280-220-3.0-0	6 W/m-K 6.3 W/m-K	24 Months	Date of Purchase	Silicone Elastomer	Tacky - Both Sides	Gray	0.118 in	Conductive Pad Sheet	220 mm	280 mm	Rectangular
