TG-A486G-320-320-0.5-0

Obsolete

t-Global Technology

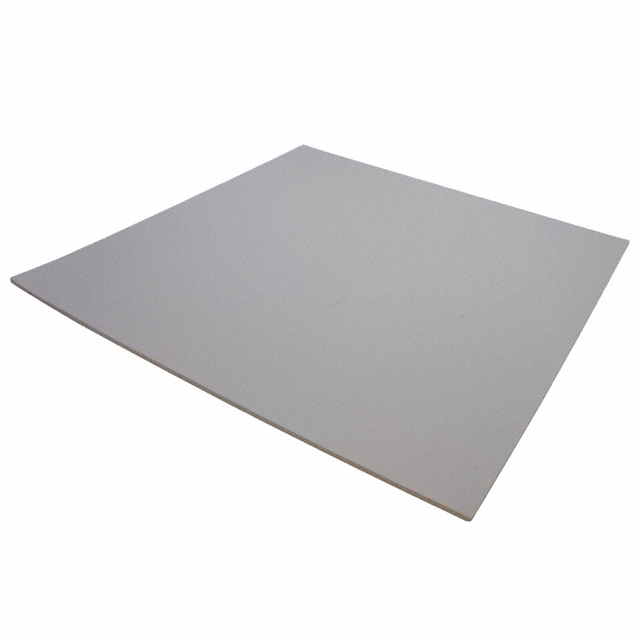

THERM PAD 320X320MM GRAY

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 320X320MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life	Thickness	Thickness	Shelf Life Start	Shape	Thermal Conductivity	Color	Type	Outline [y]	Outline [x]	Adhesive
t-Global Technology TG-A486G-300-300-3.0-1A	12 Months	0.12 in	3.05 mm	Date of Purchase	Square	6 W/m-K	Gray	Conductive Pad Sheet	300 mm	300 mm	Adhesive - One Side
t-Global Technology TG-A486G-300-300-2.0-1A	12 Months	0.079 in	2 mm	Date of Purchase	Square	6 W/m-K	Gray	Conductive Pad Sheet	300 mm	300 mm	Adhesive - One Side
t-Global Technology TG-A486G-58.6-61.6-0.3-1A
t-Global Technology TG-A486G-320-320-0.5-0	24 Months	0.0197 in	0.5 mm	Date of Purchase	Square	6 W/m-K	Gray	Conductive Pad Sheet	320 mm	320 mm	Tacky - Both Sides
t-Global Technology TG-A486G-240-200-1.0-1A	12 Months	0.0394 in	1 mm	Date of Purchase	Rectangular	6 W/m-K	Gray	Conductive Pad Sheet	200 mm	240 mm	Adhesive - One Side
t-Global Technology TG-A486G-100-100-1.0-1A	12 Months	0.0394 in	1 mm	Date of Purchase	Square	6 W/m-K 6.3 W/m-K	Gray	Conductive Pad Sheet	100 mm	100 mm	Adhesive - One Side
t-Global Technology TG-A486G-20-20-4-1A	12 Months	0.157 in	4 mm	Date of Purchase	Square	6 W/m-K	Gray	Conductive Pad Sheet	20 mm	20 mm	Adhesive - One Side
t-Global Technology TG-A486G-48.2-82-1.5-1A
t-Global Technology TG-A486G-50-10-0.8-1A	12 Months	0.0315 "	0.8 mm	Date of Purchase	Rectangular	6 W/m-K	Gray	Conductive Pad Sheet	10 mm	50 mm	Adhesive - One Side
t-Global Technology TG-A486G-280-220-3.0-0	24 Months	0.118 in	3 mm	Date of Purchase	Rectangular	6 W/m-K	Gray	Conductive Pad Sheet	220 mm	280 mm	Tacky - Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
