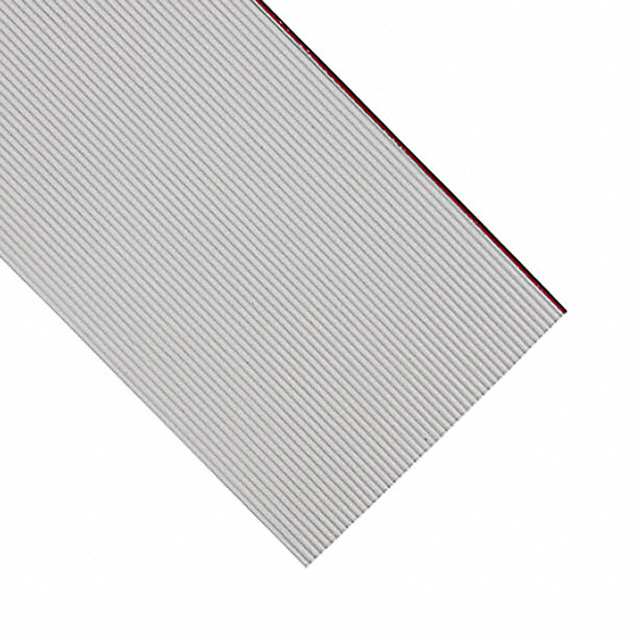

3625/50SF 30M

Active

3M (TC)

CBL RIBN 50COND 0.039 GRAY 98.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Mating Guide Interconnect Solutions Mating Guide +2

3625/50SF 30M

Active

3M (TC)

CBL RIBN 50COND 0.039 GRAY 98.4'

Deep-Dive with AI

DocumentsInterconnect Solutions Mating Guide Interconnect Solutions Mating Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3625/50SF 30M

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 m, 30 m
Length	3.28 ft, 98.4 ft
Number of Conductors	50
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	1.969 in
Ribbon Width [x]	50.01 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3625 Series

Part	Ribbon Width	Ribbon Width	Number of Conductors	Ratings	Insulation Resistance	Spool Size	Spool Size	Pitch [x]	Pitch [x]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Length	Length	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Conductor Material	Length	Shielding	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 3625/40 100M	40 mm	1.575 in	40	UL Style 2651	10 GOhm	328.1 '	100 m	0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	328.1 ft	100 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned	Enter Number of Meters in Order Quantity	Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/26SF	26.01 mm	1.024 in	26		10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	98.4 ft	30 m	Splice Free	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/20SF 30M	20 mm	0.787 in	20	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft	1 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/16 100MSF			16	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	164 ft 328.1 ft	50 m 100 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in	0.63 in	16 mm
3M (TC) 3625/40 100MSF	40 mm	1.575 in	40	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft 164 ft	25 m 50 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/50SF 30M			50	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft 98.4 ft	1 m 30 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in			1.969 in	50.01 mm
3M (TC) 3625/22 100MSF	22 mm	0.866 in	22	UL Style 2651	10 GOhm	328.1 '	100 m	0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft	25 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned	Enter Number of Meters in Order Quantity	Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/24 100MSF			24	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	16.4 ' 82 ft 164 ft 328.1 ft	5 m 25 m 50 m 100 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/44 100M			44	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft 164 ft	25 m 50 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in					43.99 mm	1.732 in
3M (TC) 3625/26 30M	26.01 mm	1.024 in	26	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft 16.4 '	1 m 5 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.32
		5	$ 12.69
		10	$ 11.66
		25	$ 10.46
		50	$ 9.62
		100	$ 8.82
	Spool	1	$ 333.69
		2	$ 302.38
		3	$ 285.45
		5	$ 265.48
		7	$ 253.13
		10	$ 240.70
		25	$ 211.69
		50	$ 192.34
