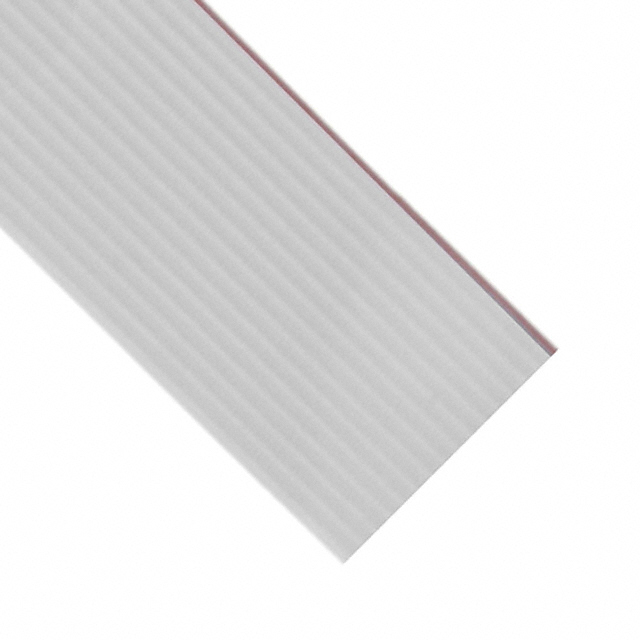

3625/16 100MSF

Active

3M (TC)

CBL RIBN 16COND 0.039 GRAY 164'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Mating Guide Datasheet

3625/16 100MSF

Active

3M (TC)

CBL RIBN 16COND 0.039 GRAY 164'

Deep-Dive with AI

DocumentsInterconnect Solutions Mating Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3625/16 100MSF

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	50 m, 100 m
Length	164 ft, 328.1 ft
Number of Conductors	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	0.63 in
Ribbon Width [y]	16 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3625 Series

Part	Ribbon Width	Ribbon Width	Number of Conductors	Ratings	Insulation Resistance	Spool Size	Spool Size	Pitch [x]	Pitch [x]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Length	Length	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Conductor Material	Length	Shielding	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 3625/40 100M	40 mm	1.575 in	40	UL Style 2651	10 GOhm	328.1 '	100 m	0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	328.1 ft	100 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned	Enter Number of Meters in Order Quantity	Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/26SF	26.01 mm	1.024 in	26		10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	98.4 ft	30 m	Splice Free	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/20SF 30M	20 mm	0.787 in	20	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft	1 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/16 100MSF			16	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	164 ft 328.1 ft	50 m 100 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in	0.63 in	16 mm
3M (TC) 3625/40 100MSF	40 mm	1.575 in	40	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft 164 ft	25 m 50 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/50SF 30M			50	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft 98.4 ft	1 m 30 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in			1.969 in	50.01 mm
3M (TC) 3625/22 100MSF	22 mm	0.866 in	22	UL Style 2651	10 GOhm	328.1 '	100 m	0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft	25 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned	Enter Number of Meters in Order Quantity	Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/24 100MSF			24	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	16.4 ' 82 ft 164 ft 328.1 ft	5 m 25 m 50 m 100 m	Splice Free Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
3M (TC) 3625/44 100M			44	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	82 ft 164 ft	25 m 50 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in					43.99 mm	1.732 in
3M (TC) 3625/26 30M	26.01 mm	1.024 in	26	UL Style 2651	10 GOhm			0.039 in	1 mm	Gray	-20 C	105 ░C	28 AWG	300 V	3.28 ft 16.4 '	1 m 5 m	Zippable	7	36 AWG	Poly-Vinyl Chloride (PVC)	Flat Cable	Copper Tinned		Unshielded	Red	0.89 mm	0.035 in
