SFW10R-1STE1

Active

Amphenol ICC (FCI)

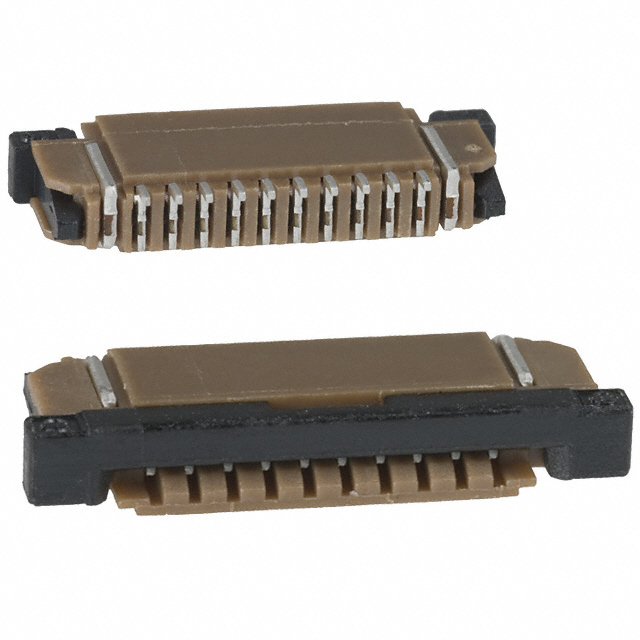

CONN FFC FPC BOTTOM 10POS 1MM RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFW10R-1STE1

Active

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 10POS 1MM RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW10R-1STE1

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

SFW10R Series

Part	FFC, FCB Thickness	Cable End Type	Connector/Contact Type	Pitch [x]	Pitch [x]	Flat Flex Type	Housing Color	Housing Material	Actuator Color	Contact Material	Number of Positions	Material Flammability Rating	Contact Finish	Termination	Mounting Type	Height Above Board [z]	Height Above Board [z]	Actuator Material	Locking Feature	Mating Cycles	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness [z]	Features
Amphenol ICC (FCI) SFW10R-3STAE5LF	0.33 mm	Tabbed	Contacts Bottom	0.039 in	1 mm	FPC	Black	Polyphenylene Sulfide (PPS) Glass Filled	Brown	Phosphor Bronze	10	UL94 V-0	Gold	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock
Amphenol ICC (FCI) SFW10R-3STAE1LF	0.3 mm	Straight Tapered	Contacts Bottom	0.039 in	1 mm	FPC	Black	Polyphenylene Sulfide (PPS) Glass Filled		Phosphor Bronze	10	UL94 V-0	Gold	Kinked Pin	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled		20	100 V	105 ░C	-55 °C
Amphenol ICC (FCI) SFW10R-2STAE1LF	0.33 mm	Tapered	Contacts Top	0.039 in	1 mm	FPC	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Gold	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	100 V	105 ░C	-55 °C
Amphenol ICC (FCI) SFW10R-3STE1LF		Straight Tapered	Contacts Bottom	0.039 in	1 mm	FFC FPC	Black	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Tin	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	100 V	105 ░C	-55 °C	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW10R-1STE1		Straight Tapered	Contacts Bottom	0.039 in	1 mm	FFC FPC	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Tin Alloy	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock					0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW10R-1STE1HLF		Straight Tapered	Contacts Bottom	0.039 in	1 mm	FFC FPC	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Black	Phosphor Bronze	10	UL94 V-0	Tin	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Slide Lock	20	100 V	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW10R-1STAE1LF		Straight Tapered	Contacts Bottom	0.039 in	1 mm	FPC	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Gold	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	100 V	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW10R-6STE1	0.3 mm	Tapered	Contacts Top	0.039 in	1 mm	CIC		Polyphenylene Sulfide (PPS) Glass Filled			10			Solder	Surface Mount Right Angle	0.106 in	2.7 mm		Slide Lock
Amphenol ICC (FCI) SFW10R-1STE1LF		Straight Tapered	Contacts Bottom	0.039 in	1 mm	FFC FPC	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Tin	Kinked Pin	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	100 V	105 ░C	-55 °C	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW10R-5STE1LF	0.3 mm	Tapered	Contacts Bottom	0.039 in	1 mm	CIC	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Black	Phosphor Bronze	10	UL94 V-0	Tin	Solder	Surface Mount Right Angle	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	10	100 V	105 ░C	-55 °C		Solder Retention Zero Insertion Force (ZIF)
