SFW10R-3STE1LF
ActiveAmphenol ICC (FCI)

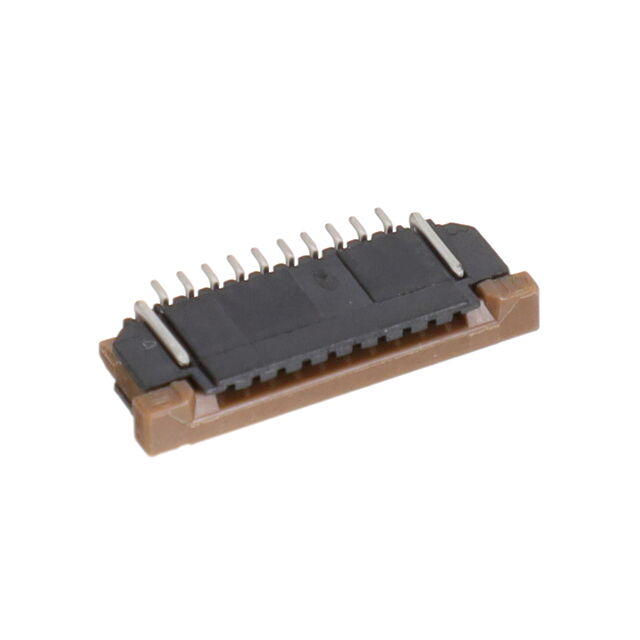

CONN FFC FPC BOTTOM 10POS 1MM RA
Deep-Dive with AI
Search across all available documentation for this part.
SFW10R-3STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC BOTTOM 10POS 1MM RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW10R-3STE1LF |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Black |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
SFW10R Series
| Part | FFC, FCB Thickness | Cable End Type | Connector/Contact Type | Pitch [x] | Pitch [x] | Flat Flex Type | Housing Color | Housing Material | Actuator Color | Contact Material | Number of Positions | Material Flammability Rating | Contact Finish | Termination | Mounting Type | Height Above Board [z] | Height Above Board [z] | Actuator Material | Locking Feature | Mating Cycles | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.33 mm | Tabbed | Contacts Bottom | 0.039 in | 1 mm | FPC | Black | Polyphenylene Sulfide (PPS) Glass Filled | Brown | Phosphor Bronze | 10 | UL94 V-0 | Gold | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | ||||||
Amphenol ICC (FCI) | 0.3 mm | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FPC | Black | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | 10 | UL94 V-0 | Gold | Kinked Pin | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 100 V | 105 ░C | -55 °C | ||||
Amphenol ICC (FCI) | 0.33 mm | Tapered | Contacts Top | 0.039 in | 1 mm | FPC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Gold | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | 100 V | 105 ░C | -55 °C | ||
Amphenol ICC (FCI) | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FFC FPC | Black | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Tin | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | 100 V | 105 ░C | -55 °C | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FFC FPC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Tin Alloy | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 0.3 mm 0.33 mm | ||||||
Amphenol ICC (FCI) | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FFC FPC | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Black | Phosphor Bronze | 10 | UL94 V-0 | Tin | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | 20 | 100 V | 105 ░C | -55 °C | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FPC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Gold | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | 100 V | 105 ░C | -55 °C | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.3 mm | Tapered | Contacts Top | 0.039 in | 1 mm | CIC | Polyphenylene Sulfide (PPS) Glass Filled | 10 | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Slide Lock | ||||||||||||
Amphenol ICC (FCI) | Straight Tapered | Contacts Bottom | 0.039 in | 1 mm | FFC FPC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Tin | Kinked Pin | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | 100 V | 105 ░C | -55 °C | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.3 mm | Tapered | Contacts Bottom | 0.039 in | 1 mm | CIC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Phosphor Bronze | 10 | UL94 V-0 | Tin | Solder | Surface Mount Right Angle | 0.106 in | 2.7 mm | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 10 | 100 V | 105 ░C | -55 °C | Solder Retention Zero Insertion Force (ZIF) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
Description
General part information
SFW10R Series
10 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
