TPS254900Q1EVM-817
ActiveEVALUATION MODULE
Deep-Dive with AI
Search across all available documentation for this part.

TPS254900Q1EVM-817
ActiveEVALUATION MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | TPS254900Q1EVM-817 | TPS254900 Series |
---|---|---|
Current - Output (Max) | - | 3 - 3.2 A |
Fault Protection | - | Over Voltage, UVLO, Current Limiting, Over Temperature, Current Limiting (Adjustable) |
Features | - | Status Flag |
Function | Power Distribution Switch (Load Switch) | Power Distribution Switch (Load Switch) |
Grade | - | Automotive |
Input Type | - | Differential, Non-Inverting |
Interface | - | On/Off |
Mounting Type | - | Surface Mount |
Number of Outputs | - | 1 |
Operating Temperature | - | -40 °C |
Operating Temperature | - | 85 - 125 °C |
Output Configuration | - | Low Side, High Side |
Output Type | - | N-Channel |
Package / Case | - | 20-WFQFN Exposed Pad |
Qualification | - | AEC-Q100 |
Ratio - Input:Output | - | 1:1 |
Rds On (Typ) | - | 45 mOhm |
Supplied Contents | Board(s) | Board(s) |
Supplier Device Package | - | 20-WQFN (4x3) |
Switch Type | - | USB Switch |
Type | Power Management | Power Management |
Utilized IC / Part | TPS254900-Q1 | TPS254900A-Q1, TPS254900-Q1 |
Voltage - Load | - | 0.5 - 4.5 V |
Voltage - Load | - | 0.7 - 6.5 V |
Voltage - Supply (Vcc/Vdd) | - | 4.5 V |
Voltage - Supply (Vcc/Vdd) | - | 6.5 V |
Voltage - Supply (Vcc/Vdd) | - | Not Required |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS254900 Series
Automotive USB host charger with short-to-VBATT protection
Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Fault Protection | Supplier Device Package | Output Type | Package / Case | Switch Type | Number of Outputs | Input Type | Ratio - Input:Output [custom] | Qualification | Grade | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Output Configuration | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Features | Rds On (Typ) | Interface | Voltage - Supply (Vcc/Vdd) | Utilized IC / Part | Supplied Contents | Function | Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS254900AIRVCTQ1The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V.
The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines.
The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop.
The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN.
The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V.
The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines.
The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop.
The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN. | -40 °C | 85 °C | 3.2 A | Current Limiting, Over Voltage, UVLO | 20-WQFN (4x3) | N-Channel | 20-WFQFN Exposed Pad | USB Switch | 1 | Differential | 1:1 | AEC-Q100 | Automotive | 4.5 V | 6.5 V | Low Side | Surface Mount | 0.5 V | 0.7 V | ||||||||
Texas Instruments TPS254900IRVCRQ1The TPS254900-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream dc-dc converter, processor, or hub data lines.
The TPS254900-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900-Q1 has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN.
The TPS254900-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream dc-dc converter, processor, or hub data lines.
The TPS254900-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900-Q1 has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN. | -40 °C | 125 ¯C | 3 A | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | 20-WQFN (4x3) | N-Channel | 20-WFQFN Exposed Pad | USB Switch | 1 | Non-Inverting | 1:1 | AEC-Q100 | Automotive | High Side | Surface Mount | 4.5 V | 6.5 V | Status Flag | 45 mOhm | On/Off | Not Required | ||||||
Texas Instruments TPS254900AIRVCRQ1The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V.
The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines.
The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop.
The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN.
The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V.
The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines.
The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop.
The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity.
The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices.
A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management.
The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN. | -40 °C | 85 °C | 3.2 A | Current Limiting, Over Voltage, UVLO | 20-WQFN (4x3) | N-Channel | 20-WFQFN Exposed Pad | USB Switch | 1 | Differential | 1:1 | AEC-Q100 | Automotive | 4.5 V | 6.5 V | Low Side | Surface Mount | 0.5 V | 0.7 V | ||||||||

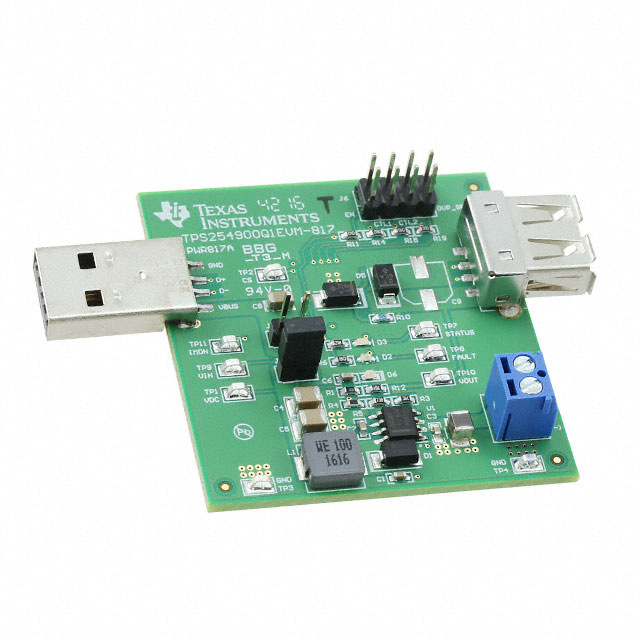

Texas Instruments TPS254900AQ1EVMTPS254900A-Q1 Power Distribution Switch (Load Switch) Power Management Evaluation Board | TPS254900A-Q1 | Board(s) | Power Distribution Switch (Load Switch) | Power Management | |||||||||||||||||||||||
Texas Instruments TPS254900Q1EVM-817TPS254900-Q1 Power Distribution Switch (Load Switch) Power Management Evaluation Board | TPS254900-Q1 | Board(s) | Power Distribution Switch (Load Switch) | Power Management |
Description
General part information
TPS254900 Series
The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V.
The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines.
The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop.
