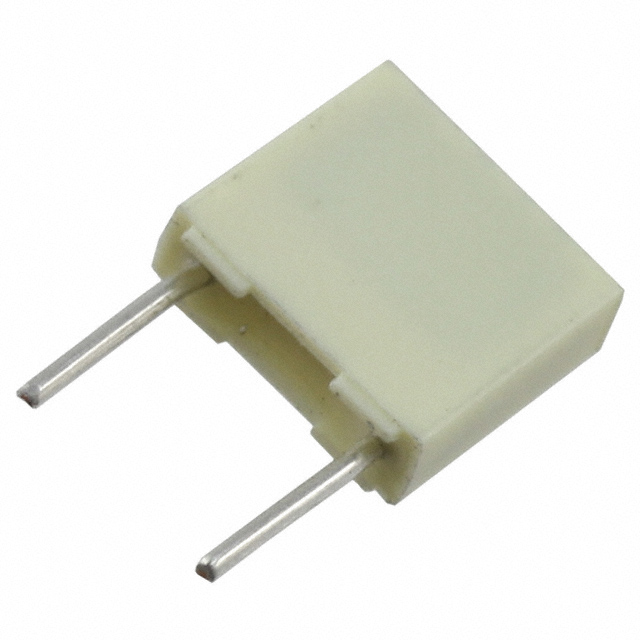

RSBDC2820DQ00J

Active

KEMET

CAP FILM 0.08UF 5% 63VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RSBDC2820DQ00J

Active

KEMET

CAP FILM 0.08UF 5% 63VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSBDC2820DQ00J

Applications	Automotive
Capacitance	0.08 µF
Dielectric Material	Polyester, Metallized
Features	High Temperature
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

RSBDC Series

Part	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Termination	Capacitance	Features	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Dielectric Material	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET RSBDC3470AA10J	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	General Purpose	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	-55 °C	125 °C
KEMET RSBDC2820DQ00J					Radial	PC Pins	0.08 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC4100Z310K	5 mm	0.197 in	7.2 mm	5 mm	Radial	PC Pins	1 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200	0.197 "	0.283 in
KEMET RSBDC3100AA00J	5 mm	0.197 in	7.2 mm		Radial	PC Pins	100000 pF	High Temperature	General Purpose	0.26 in	6.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	-55 °C	125 °C		0.098 in	0.283 in	2.5 mm
KEMET RSBDC3330DQ00K	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.33 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3180SH10J					Radial	PC Pins	0.18 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3470Z310K	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3470DQ10J	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.49
		10	$ 0.32
		50	$ 0.24
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.13
	Tape & Box (TB)	3500	$ 0.09
		7000	$ 0.08

Description

General part information

RSBDC Series

0.08 µF Film Capacitor 40V 63V Polyester, Metallized Radial
