RSBDC3470AA10J

Active

KEMET

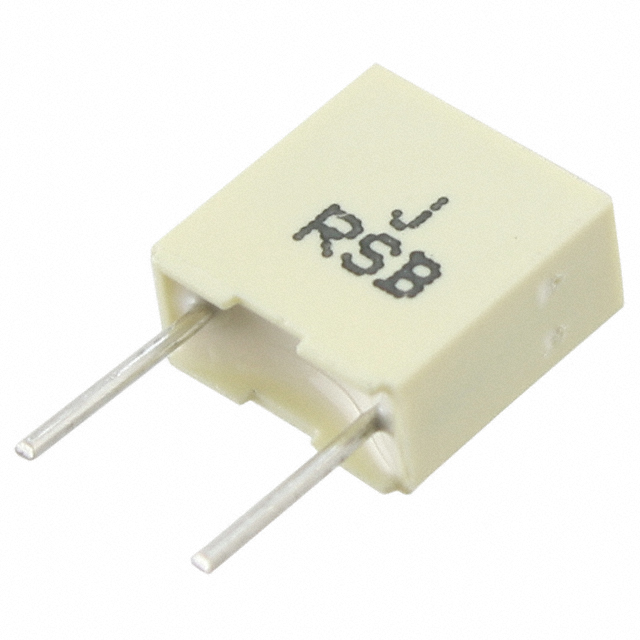

FILM CAPACITOR, 0.47UF, 63VDC, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

RSBDC3470AA10J

Active

KEMET

FILM CAPACITOR, 0.47UF, 63VDC, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSBDC3470AA10J

Applications	General Purpose
Capacitance	0.47 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Features	High Temperature
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.283 in, 7.2 mm
Size / Dimension [y]	3.5 mm, 0.138 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

RSBDC Series

Part	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Termination	Capacitance	Features	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Dielectric Material	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET RSBDC3470AA10J	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	General Purpose	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	-55 °C	125 °C
KEMET RSBDC2820DQ00J					Radial	PC Pins	0.08 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC4100Z310K	5 mm	0.197 in	7.2 mm	5 mm	Radial	PC Pins	1 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200	0.197 "	0.283 in
KEMET RSBDC3100AA00J	5 mm	0.197 in	7.2 mm		Radial	PC Pins	100000 pF	High Temperature	General Purpose	0.26 in	6.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	-55 °C	125 °C		0.098 in	0.283 in	2.5 mm
KEMET RSBDC3330DQ00K	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.33 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3180SH10J					Radial	PC Pins	0.18 µF	High Temperature	Automotive			63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3470Z310K	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	-55 °C	125 °C	AEC-Q200
KEMET RSBDC3470DQ10J	5 mm	0.197 in	0.283 in 7.2 mm	0.138 in 3.5 mm	Radial	PC Pins	0.47 µF	High Temperature	Automotive	0.299 in	7.6 mm	63 VDC	Through Hole	40 V	Polyester Metallized	5 %	-55 °C	125 °C	AEC-Q200
