R124172120
ActiveRadiall USA, Inc.

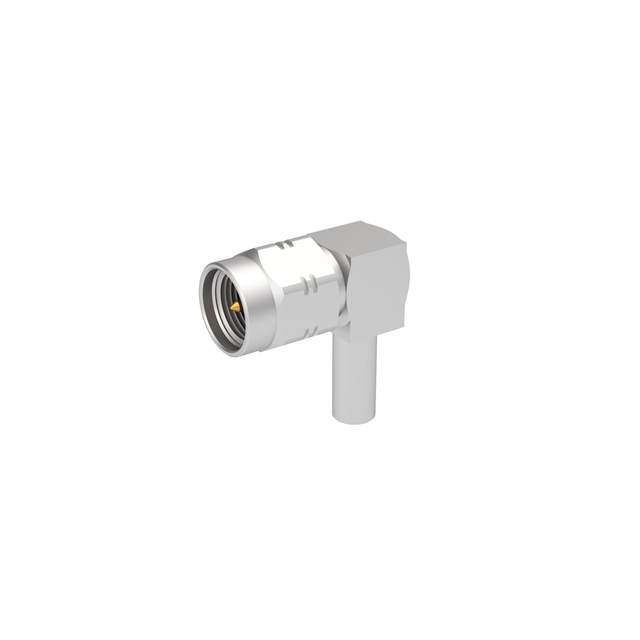

SMA / RIGHT ANGLE PLUG CRIMP TYP
Deep-Dive with AI
Search across all available documentation for this part.
R124172120
ActiveRadiall USA, Inc.
SMA / RIGHT ANGLE PLUG CRIMP TYP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R124172120 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | AEP-100FR, RG-174, 316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.33 | |
| 10 | $ 6.60 | |||
| 25 | $ 6.22 | |||
| 50 | $ 6.06 | |||
| 100 | $ 5.90 | |||
| 300 | $ 5.61 | |||
Description
General part information
R12417 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
