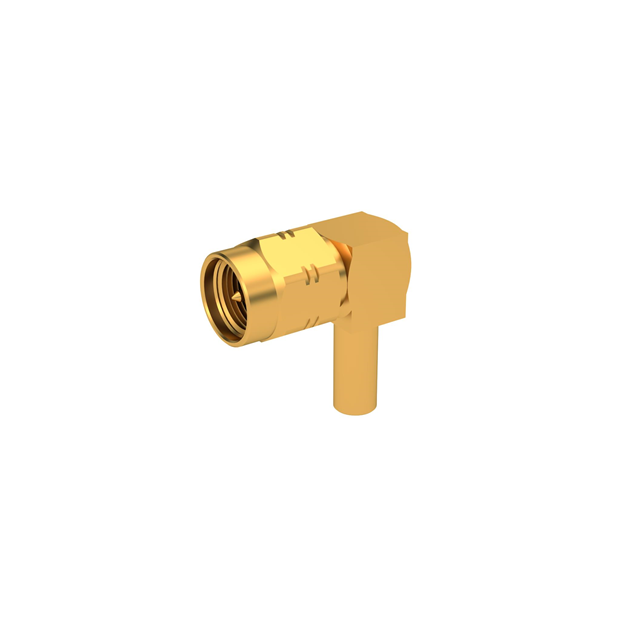

R124172123
ActiveRadiall USA, Inc.
SMACOM M RA CR 2.6/50 C100
Deep-Dive with AI
Search across all available documentation for this part.
R124172123
ActiveRadiall USA, Inc.
SMACOM M RA CR 2.6/50 C100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R124172123 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174, 316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Heat Shrink, 1 Connector, 1 End Cap, 1 Ferrule |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.60 | |
| 10 | $ 13.83 | |||
| 25 | $ 13.29 | |||
| 50 | $ 12.76 | |||
| 100 | $ 12.05 | |||
| 300 | $ 10.99 | |||
| 500 | $ 10.28 | |||
| 1000 | $ 9.43 | |||
Description
General part information
R12417 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
