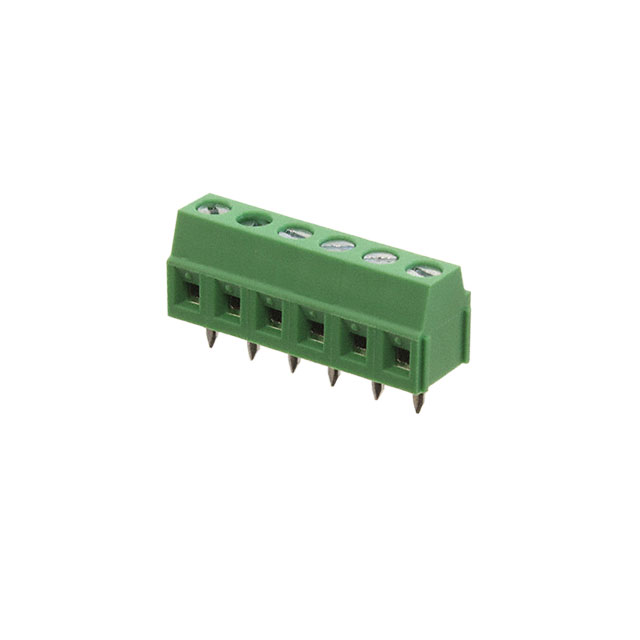

EBWA-06-B

Active

Adam Tech

EURO BLOCK 6P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 6P

Technical Specifications

Parameters and characteristics for this part

Specification	EBWA-06-B

Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	10 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	6
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2
Torque - Screw	0.2 Nm
Torque - Screw	1.7 Lb-In
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Voltage	Current	Color	Features	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Wire Termination	Screw Material - Plating	Mounting Type	Screw Thread	Positions Per Level	Contact Material - Plating [custom]
Adam Tech EBWA-06-B	300 V	10 A	Green	Interlocking (Side)	0.15 in	3.81 mm	0.2 Nm	1.7 Lb-In	1	28 AWG	16 AWG	Horizontal with Board	-40 °C	105 ░C	Screw - Rising Cage Clamp	Steel Zinc Plated	Through Hole	M2	6	Brass - Tin Plated
Adam Tech EBWA-02-B	300 V	10 A	Green	Interlocking (Side)	0.15 in	3.81 mm	0.2 Nm	1.7 Lb-In	1	28 AWG	16 AWG	Horizontal with Board	-40 °C	105 ░C	Screw - Rising Cage Clamp	Steel Zinc Plated	Through Hole	M2	2	Brass - Tin Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
