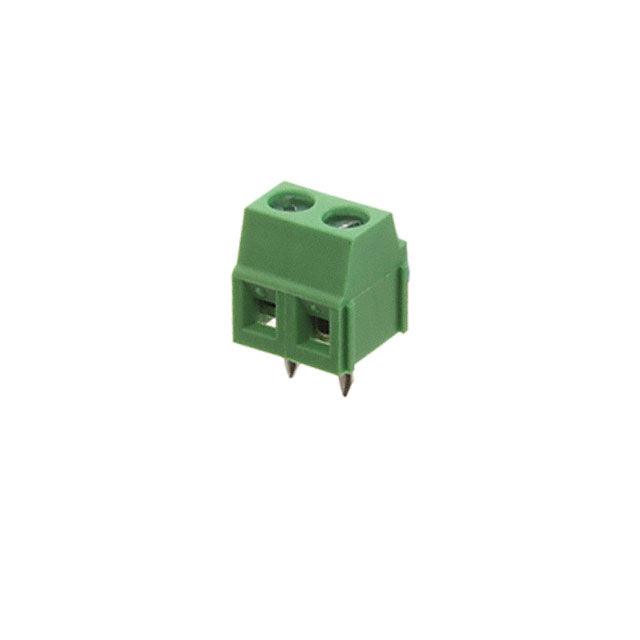

EBWA-02-B

Active

Adam Tech

PLUGGABLE TERMINAL BLOCKS EURO BLOCK 2P

EBWA-02-B

Active

Adam Tech

PLUGGABLE TERMINAL BLOCKS EURO BLOCK 2P

Description Specifications Series Pricing CAD Documents

Description

General part information

EB Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification	EBWA-02-B

Color	Green
Contact Material	Brass
Current	10 A
Features	Interlocking (Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Plating	Tin Plated
Positions Per Level	2
Screw Material	Steel
Screw Plating	Zinc Plated
Screw Thread	M2
Torque - Screw	0.2 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	16 AWG
Wire Termination	Rising Cage Clamp, Screw

EB Series

Part	Wire Termination	Positions Per Level	Number of Levels	Voltage	Features	Current	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mating Orientation	Pitch	Color	Screw Thread	Housing Material	Torque - Screw	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Screw Plating	Screw Material	Contact Material - Plating	Voltage - UL	Contact Mating Finish	Current - UL	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Number of Positions	Plug Wire Entry Angle	Type	Termination Style	Wire Gauge or Range - mm²	Plating	Contact Material	Header Orientation	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)
Adam Tech EBB-05-D-BL	Leaf Spring Screw Wire Guard	5	1	300 V	Interlocking (Side)	16 A	Through Hole	14 AWG	22 AWG	Horizontal with Board	5.08 mm	Blue	M2.6	Thermoplastic	0.3 Nm	-40 °C	115 °C	Steel Stainless	Zinc Plated	Steel	Tin
Adam Tech EB163A-02-C-180	Leg Spring Push-In Spring Screwless	2	1	300 V		20 A	Through Hole	12 AWG	24 AWG	Vertical with Board	0.197 in	Green
Adam Tech EBA-02-D-BU-01	Leaf Spring Screw Wire Guard	2	1	300 V	Interlocking (Side)	15 A	Through Hole	14 AWG	22 AWG	Horizontal with Board	5.08 mm	Blue	M3	Thermoplastic	0.4 Nm	-40 °C	115 °C	Steel Stainless	Zinc Plated	Steel	Tin
Adam Tech EBBA-03-C-SS-BU	Leaf Spring Screw Wire Guard	3	1	250 V	Interlocking (Side)	16 A	Through Hole	14 AWG	22 AWG	Horizontal with Board	0.197 in	Blue
Adam Tech EB9A-03-D		3	1		Retention Latches (Wire Side)		Free Hanging (In-Line)				5.08 mm	Green				-40 °C	105 °C					300 V	Nickel	15 A	14 AWG	28 AWG	3	90 °	Female Sockets Plug	Screw - Leaf Spring Wire Guard	2.5 mm²
Adam Tech EB59A-04-V	Leg Spring Push-In Spring Screwless	4	1	300 V		4 A	Kinked Pin Through Hole	19.5 AWG	28 AWG	Horizontal with Board	0.098 in	Gray		Nylon 6/6 PA66 Polyamide		-40 °C	105 °C															Tin Plated	Phosphor Bronze
Adam Tech EBRA-03-A		3	1				Through Hole				0.138 in	Green				-40 °C	105 °C					300 V	Tin	8 A			3		Header Male Pins Shrouded (4 Side)	Solder				Vertical
Adam Tech EB21A-02-D-DA	Rising Cage Clamp Screw	2	1	300 V	Interlocking (Side)	12 A	Through Hole	14 AWG	26 AWG		5.08 mm	Green	M2.5	Nylon 6/6 PA66 Polyamide	0.4 Nm	-40 °C	105 °C				Tin														45 °	Angle with Board	135 °
Adam Tech EBWA-02-B	Rising Cage Clamp Screw	2	1	300 V	Interlocking (Side)	10 A	Through Hole	16 AWG	28 AWG	Horizontal with Board	0.15 in	Green	M2	Nylon 6/6 PA66 Polyamide	0.2 Nm	-40 °C	105 °C		Zinc Plated	Steel												Tin Plated	Brass
Adam Tech EB7-03-C	Screw	3	1	300 V		20 A	Through Hole	12 AWG	22 AWG	Horizontal with Board	0.197 in	Green
