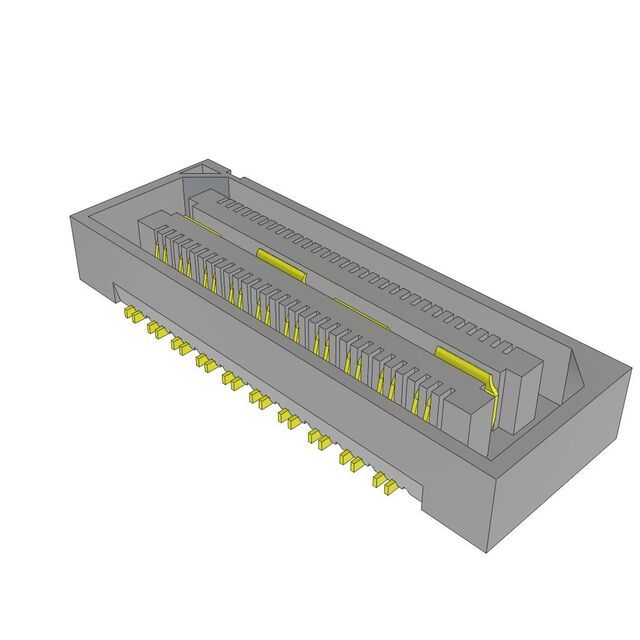

QSH-020-01-F-D-DP

Active

Samtec Inc.

CONN DIFF ARRAY RCP 40P SMD GOLD

Deep-Dive with AI

DocumentsQSH Series Other Related Documents 03 QSH-020-01-C-D-DP-A Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-020-01-F-D-DP

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Ground Bus (Plane)
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-020 Series

Part	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Features
Samtec Inc. QSH-020-01-H-D-DP-A	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.76 Ám	30 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-A-GP	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mating Flange
Samtec Inc. QSH-020-01-H-D-DP-A-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.76 Ám	30 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-C-D-DP-A	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-K-TR	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-F-D-DP	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.076 Ám	3 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane)
Samtec Inc. QSH-020-01-C-D-DP-A-TR	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-LC-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Lock Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-F-D-DP-A-L	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.076 Ám	3 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Latches
Samtec Inc. QSH-020-01-C-D-DP-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane) Pick and Place
