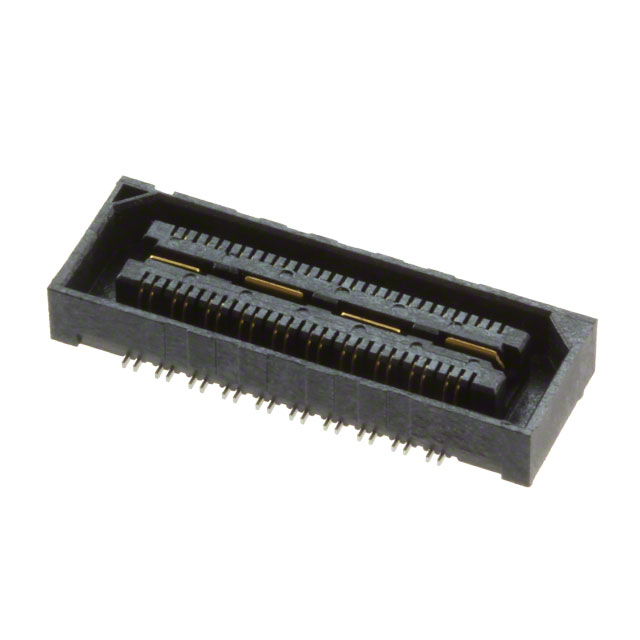

QSH-020-01-H-D-DP-A

Active

Samtec Inc.

CONN DIFF ARRAY RCP 40P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QSH Series Other Related Documents 01 +2

QSH-020-01-H-D-DP-A

Active

Samtec Inc.

CONN DIFF ARRAY RCP 40P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet QSH Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-020-01-H-D-DP-A

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-020 Series

Part	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Features
Samtec Inc. QSH-020-01-H-D-DP-A	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.76 Ám	30 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-A-GP	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mating Flange
Samtec Inc. QSH-020-01-H-D-DP-A-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.76 Ám	30 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-C-D-DP-A	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-K-TR	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-F-D-DP	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.076 Ám	3 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane)
Samtec Inc. QSH-020-01-C-D-DP-A-TR	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-020-01-L-D-DP-LC-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.25 Ám	10 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Lock Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-020-01-F-D-DP-A-L	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	0.076 Ám	3 Áin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Latches
Samtec Inc. QSH-020-01-C-D-DP-K	Differential Pair Array Female	Surface Mount	2	0.5 mm	0.02 in	Gold	3.25 mm	0.128 in	40	1.27 µm	50 µin	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane) Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	96	$ 14.01
		192	$ 13.10
