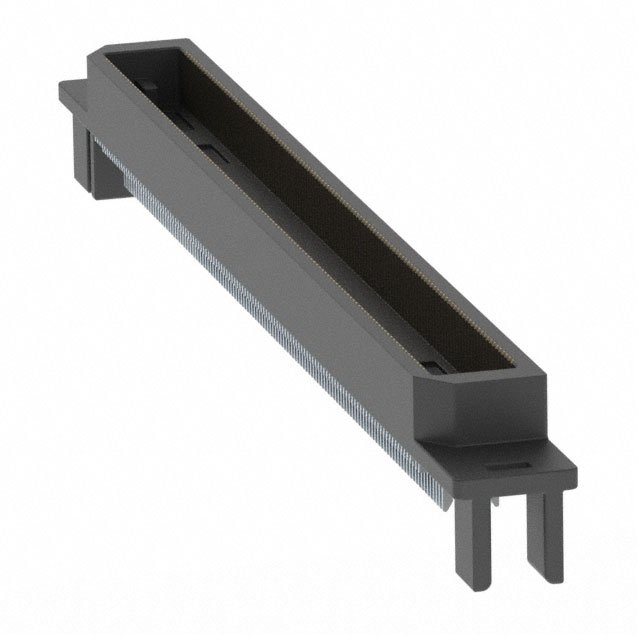

BTH-120-01-L-D-EM2

Active

Samtec Inc.

CONN HDR 240POS EDGE MNT GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 240POS EDGE MNT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-120-01-L-D-EM2

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Positions	240
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board	Height Above Board	Number of Rows	Number of Positions
Samtec Inc. BTH-120-05-H-D-A	Header Outer Shroud Contacts	19 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	18.24 mm	0.718 in	2	240
Samtec Inc. BTH-120-01-C-D-A	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	1.27 µm	50 µin	Board Guide			2	240
Samtec Inc. BTH-120-01-L-D-EM2	Header Outer Shroud Contacts		0.5 mm	0.02 in	Gold	Board Edge Straddle Mount	0.25 Ám	10 Áin				2	240
Samtec Inc. BTH-120-04-H-D-A	Header Outer Shroud Contacts	16 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	15.24 mm	0.6 in	2	240
Samtec Inc. BTH-120-01-L-D-A-TR	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.25 Ám	10 Áin	Board Guide			2	240
Samtec Inc. BTH-120-01-C-D-A-K	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	1.27 µm	50 µin	Board Guide			2	240
Samtec Inc. BTH-120-05-F-D-A	Header Outer Shroud Contacts	19 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide	18.24 mm	0.718 in	2	240
Samtec Inc. BTH-120-01-F-D-A-K	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide			2	240
Samtec Inc. BTH-120-02-H-D-A-K	Header Outer Shroud Contacts	8 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	7.26 mm	0.286 "	2	240
Samtec Inc. BTH-120-03-F-D-A	Header Outer Shroud Contacts	11 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide	10.27 mm	0.404 in	2	240

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	7	$ 22.37

General part information

240 Position Connector Header, Outer Shroud Contacts Board Edge, Straddle Mount Gold
