BTH-120 Series

Catalog

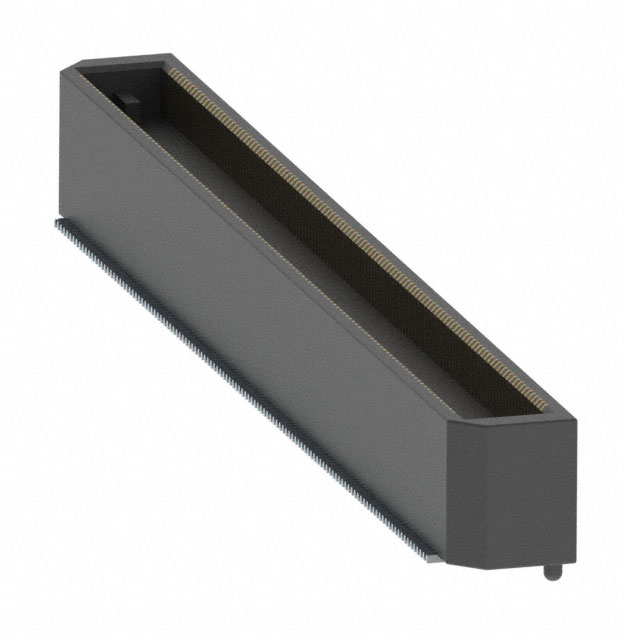

CONN HDR 240POS SMD GOLD

Part	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board	Height Above Board	Number of Rows	Number of Positions
Samtec Inc. BTH-120-05-H-D-A	Header Outer Shroud Contacts	19 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	18.24 mm	0.718 in	2	240
Samtec Inc. BTH-120-01-C-D-A	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	1.27 µm	50 µin	Board Guide			2	240
Samtec Inc. BTH-120-01-L-D-EM2	Header Outer Shroud Contacts		0.5 mm	0.02 in	Gold	Board Edge Straddle Mount	0.25 Ám	10 Áin				2	240
Samtec Inc. BTH-120-04-H-D-A	Header Outer Shroud Contacts	16 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	15.24 mm	0.6 in	2	240
Samtec Inc. BTH-120-01-L-D-A-TR	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.25 Ám	10 Áin	Board Guide			2	240
Samtec Inc. BTH-120-01-C-D-A-K	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	1.27 µm	50 µin	Board Guide			2	240
Samtec Inc. BTH-120-05-F-D-A	Header Outer Shroud Contacts	19 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide	18.24 mm	0.718 in	2	240
Samtec Inc. BTH-120-01-F-D-A-K	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide			2	240
Samtec Inc. BTH-120-02-H-D-A-K	Header Outer Shroud Contacts	8 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.76 Ám	30 Áin	Board Guide	7.26 mm	0.286 "	2	240
Samtec Inc. BTH-120-03-F-D-A	Header Outer Shroud Contacts	11 mm	0.5 mm	0.02 in	Gold	Surface Mount	0.076 Ám	3 Áin	Board Guide	10.27 mm	0.404 in	2	240
