Specification	S1DXM-M2C60M-AC240V

Circuit	DPDT (2 Form C)
Contact Rating (Current)	7 A
Delay Time (Maximum)	60 Min
Delay Time (Minimum)	0.5 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	220 V

S1DXM Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Timing Adjustment Method	Relay Type	Circuit	Delay Time (Maximum)	Delay Time (Minimum)	Timing Initiate Method	Contact Rating (Current)	Mounting Type	Function	Voltage - Supply

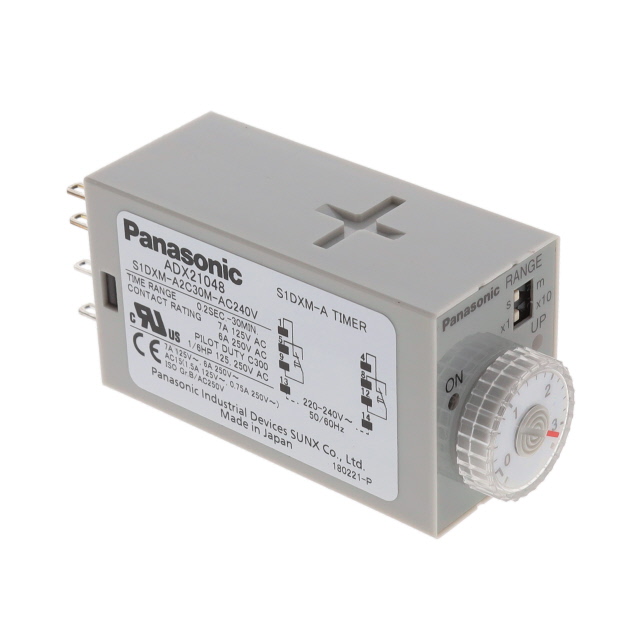

Panasonic Industrial Automation Sales S1DXMA2C30MAC240V	220 V	240 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	30 Min	0.2 Sec	Input Voltage	7 A	Socketable	On-Delay
Panasonic Industrial Automation Sales S1DXM-A2C60M-AC220V	200 VAC	220 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	60 Min	0.5 Sec	Input Voltage	7 A	Socketable	On-Delay

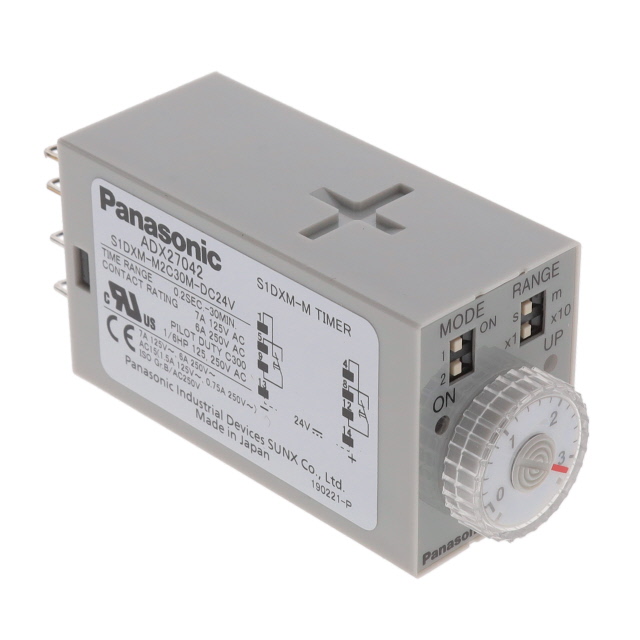

Panasonic Industrial Automation Sales S1DXM-M2C30M-DC24V			Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	30 Min	0.2 Sec	Input Voltage	7 A	Socketable	Programmable (Multi-Function)	24 VDC

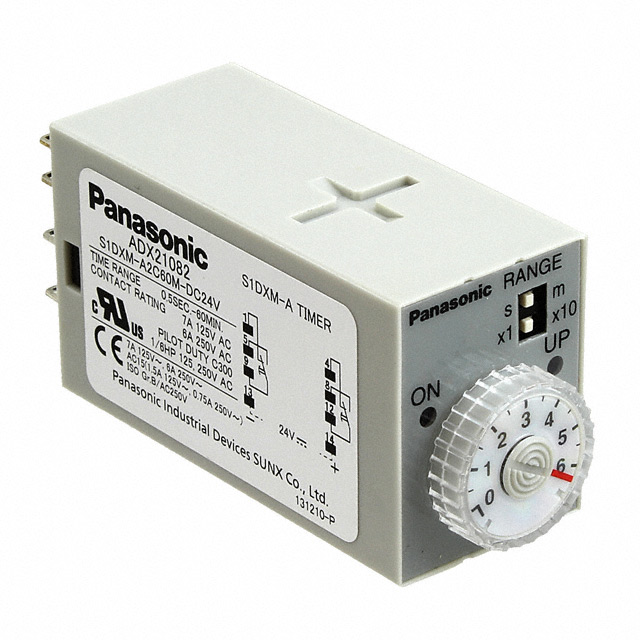

Panasonic Industrial Automation Sales S1DXM-A2C60M-DC24V			Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	60 Min	0.5 Sec	Input Voltage	7 A	Socketable	On-Delay	24 VDC
Panasonic Industrial Automation Sales S1DXMM2C10MAC120V	100 VAC	120 V	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	10 Min	0.05 Sec	Input Voltage	7 A	Socketable	Programmable (Multi-Function)

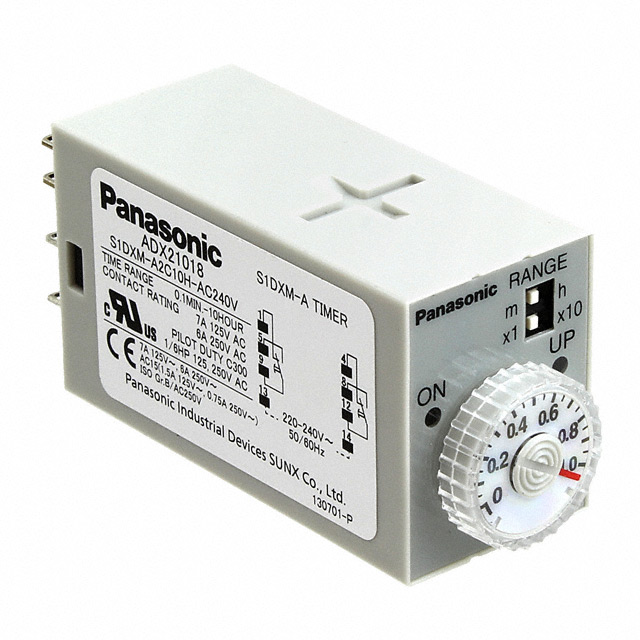

Panasonic Industrial Automation Sales S1DXMA2C10HAC240V	220 V	240 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	10 Hrs	0.05 Min	Input Voltage	7 A	Socketable	On-Delay

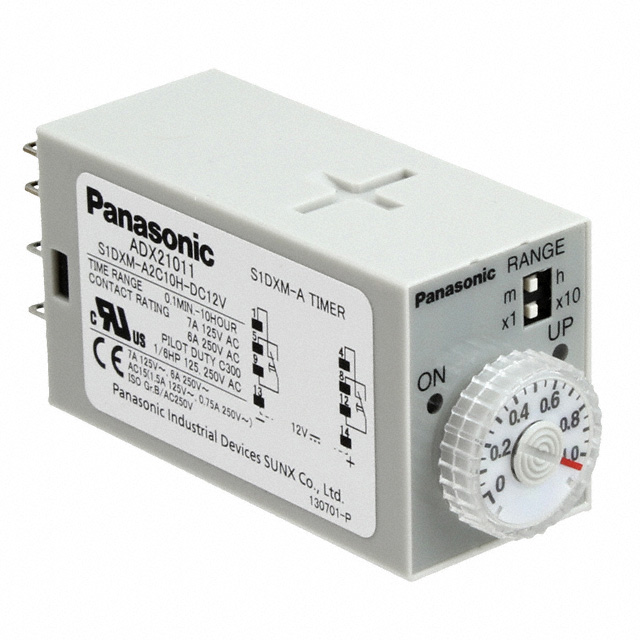

Panasonic Industrial Automation Sales S1DXM-A2C10H-DC12V			Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	10 Hrs	0.05 Min	Input Voltage	7 A	Socketable	On-Delay	12 VDC
Panasonic Industrial Automation Sales S1DXM-M2C60M-AC240V	220 V	240 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	60 Min	0.5 Sec	Input Voltage	7 A	Socketable	Programmable (Multi-Function)

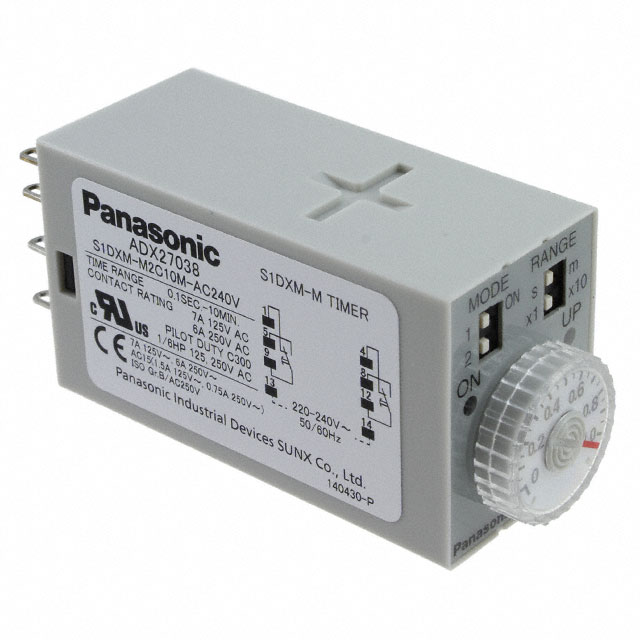

Panasonic Industrial Automation Sales S1DXMM2C10MAC240V	220 V	240 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	10 Min	0.05 Sec	Input Voltage	7 A	Socketable	Programmable (Multi-Function)
Panasonic Industrial Automation Sales S1DXM-M2C10M-AC220V	200 VAC	220 VAC	Plug In	Hand Dial	Mechanical Relay	DPDT (2 Form C)	10 Min	0.05 Sec	Input Voltage	7 A	Socketable	Programmable (Multi-Function)
