S1DXM-A2C60M-DC24V
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 60MIN 7A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
S1DXM-A2C60M-DC24V
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 60MIN 7A 250V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | S1DXM-A2C60M-DC24V |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 7 A, 250 VAC |
| Delay Time [Max] | 60 Min |
| Delay Time [Min] | 0.5 Sec |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VDC |
S1DXM Series
| Part | Termination Style | Relay Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Delay Time [Min] | Delay Time [Max] | Mounting Type | Circuit | Timing Initiate Method | Contact Rating @ Voltage | Timing Adjustment Method | Function | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 220 VAC | 240 VAC | 0.2 Sec | 30 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | On-Delay | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 200 VAC | 220 VAC | 0.5 Sec | 60 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | On-Delay | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 0.2 Sec | 30 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | Programmable (Multi-Function) | 24 VDC | ||
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 0.5 Sec | 60 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | On-Delay | 24 VDC | ||
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 100 VAC | 120 VAC | 0.05 Sec | 10 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | Programmable (Multi-Function) | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 220 VAC | 240 VAC | 0.05 Min | 10 Hrs | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | On-Delay | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 0.05 Min | 10 Hrs | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | On-Delay | 12 VDC | ||
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 220 VAC | 240 VAC | 0.5 Sec | 60 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | Programmable (Multi-Function) | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 220 VAC | 240 VAC | 0.05 Sec | 10 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | Programmable (Multi-Function) | |
Panasonic Industrial Automation Sales | Plug In | Mechanical Relay | 200 VAC | 220 VAC | 0.05 Sec | 10 Min | Socketable | DPDT (2 Form C) | Input Voltage | 7 A 250 VAC | Hand Dial | Programmable (Multi-Function) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S1DXM Series

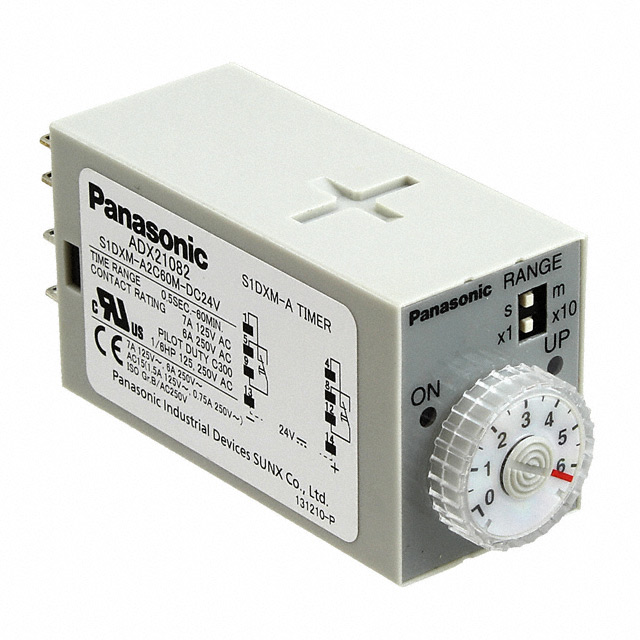

On-Delay Time Delay Relay DPDT (2 Form C) 0.5 Sec ~ 60 Min Delay 7A @ 250VAC Socketable
