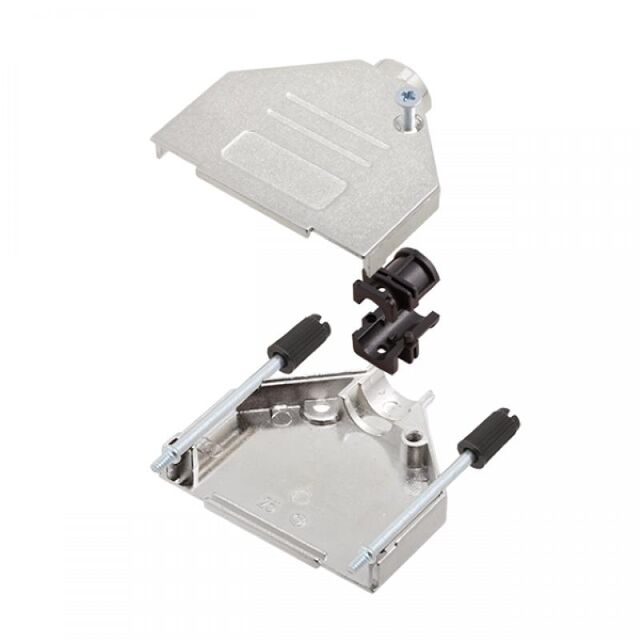

ACOV-SUB-25MB41

Active

Assmann WSW Components

CONN BACKSHELL 25POS 180DEG SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACOV-SUB-25MB41

Active

Assmann WSW Components

CONN BACKSHELL 25POS 180DEG SHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACOV-SUB-25MB41

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Grommets
Material	Zinc
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

ACOV-SUB Series

Part	Material	Compatible Shell Size	Plating	Primary Material	Compatible D-Sub Size	Color	Cable Type	Cable Exit	Accessory Type	Number of Positions	Features	Shielding	Cable Exit	Hardware
Assmann WSW Components ACOV-SUB-09MB20	Acrylonitrile Butadiene Styrene (ABS)	E	Nickel over Copper	Plastic	9pos HD15pos	Silver	Round	180° 90°	Two Piece Backshell	9	Mating Screws 4-40	Shielded
Assmann WSW Components ACOV-SUB-15MB40	Zinc	A	Nickel	Metal	15pos HD26pos	Silver	Round		Two Piece Backshell	15	Mating Screws 4-40	Shielded	180 °	Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-15NB18	Polyamide (PA) Nylon	A		Plastic	15pos HD26pos	Green	Round		Hinged Backshell	15	Mating Screws 4-40	Unshielded	180 °	Cable Clamp
Assmann WSW Components ACOV-SUB-09MB11	Acrylonitrile Butadiene Styrene (ABS)	E	Nickel over Copper	Plastic	9pos HD15pos	Silver	Round	180° 90°	Two Piece Backshell	9	Mating Screws 4-40	Shielded		Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-15NB23	Acrylonitrile Butadiene Styrene (ABS)	A		Plastic	15pos HD26pos	Black	Round		Two Piece Backshell	15	Mating Screws 4-40	Unshielded	180 °	Assembly Hardware Grommets
Assmann WSW Components ACOV-SUB-37MB10	Acrylonitrile Butadiene Styrene (ABS)	C	Nickel over Copper	Plastic	37pos HD62pos	Silver	Round		Two Piece Backshell	37	Mating Screws 4-40	Shielded	180 °	Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-15MB43	Zinc	A	Nickel	Metal	15pos HD26pos	Silver	Round		Two Piece Backshell	15	Latch Lock Mating Screws 4-40	Shielded	45 °	Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-25MB30	Zinc	B	Nickel	Metal	25pos HD44pos	Silver	Round		Two Piece Backshell		Mating Screws 4-40	Shielded	180 °	Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-25MB37	Zinc	B	Nickel	Metal	25pos HD44pos	Silver	Round		Two Piece Backshell		Mating Screws 4-40	Shielded	45 °	Assembly Hardware Cable Clamp Grommets
Assmann WSW Components ACOV-SUB-25MB41	Zinc	B	Nickel	Metal	25pos HD44pos	Silver	Round		Two Piece Backshell		Mating Screws 4-40	Shielded	180 °	Assembly Hardware Grommets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.56

Description

General part information

ACOV-SUB Series

25 Position Two Piece Backshell Connector Silver 180° Shielded
