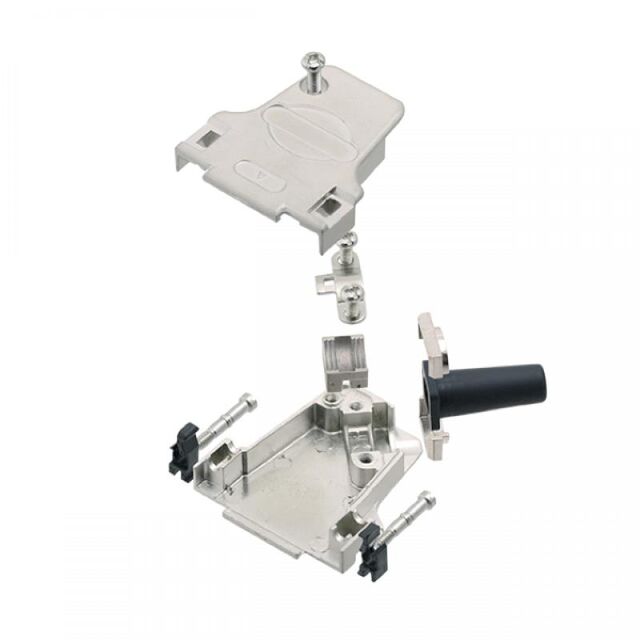

ACOV-SUB-15MB43
ActiveAssmann WSW Components
CONN BACKSHELL 15POS 45DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACOV-SUB-15MB43
ActiveAssmann WSW Components
CONN BACKSHELL 15POS 45DEG SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACOV-SUB-15MB43 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 45 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Latch Lock, Mating Screws 4-40 |
| Hardware | Grommets, Assembly Hardware, Cable Clamp |
| Material | Zinc |
| Number of Positions | 15 |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Shielded |
ACOV-SUB Series
| Part | Material | Compatible Shell Size | Plating | Primary Material | Compatible D-Sub Size | Color | Cable Type | Cable Exit | Accessory Type | Number of Positions | Features | Shielding | Cable Exit | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | Acrylonitrile Butadiene Styrene (ABS) | E | Nickel over Copper | Plastic | 9pos HD15pos | Silver | Round | 180° 90° | Two Piece Backshell | 9 | Mating Screws 4-40 | Shielded | ||
Assmann WSW Components | Zinc | A | Nickel | Metal | 15pos HD26pos | Silver | Round | Two Piece Backshell | 15 | Mating Screws 4-40 | Shielded | 180 ° | Assembly Hardware Cable Clamp Grommets | |
Assmann WSW Components | Polyamide (PA) Nylon | A | Plastic | 15pos HD26pos | Green | Round | Hinged Backshell | 15 | Mating Screws 4-40 | Unshielded | 180 ° | Cable Clamp | ||
Assmann WSW Components | Acrylonitrile Butadiene Styrene (ABS) | E | Nickel over Copper | Plastic | 9pos HD15pos | Silver | Round | 180° 90° | Two Piece Backshell | 9 | Mating Screws 4-40 | Shielded | Assembly Hardware Cable Clamp Grommets | |
Assmann WSW Components | Acrylonitrile Butadiene Styrene (ABS) | A | Plastic | 15pos HD26pos | Black | Round | Two Piece Backshell | 15 | Mating Screws 4-40 | Unshielded | 180 ° | Assembly Hardware Grommets | ||
Assmann WSW Components | Acrylonitrile Butadiene Styrene (ABS) | C | Nickel over Copper | Plastic | 37pos HD62pos | Silver | Round | Two Piece Backshell | 37 | Mating Screws 4-40 | Shielded | 180 ° | Assembly Hardware Cable Clamp Grommets | |
Assmann WSW Components | Zinc | A | Nickel | Metal | 15pos HD26pos | Silver | Round | Two Piece Backshell | 15 | Latch Lock Mating Screws 4-40 | Shielded | 45 ° | Assembly Hardware Cable Clamp Grommets | |
Assmann WSW Components | Zinc | B | Nickel | Metal | 25pos HD44pos | Silver | Round | Two Piece Backshell | Mating Screws 4-40 | Shielded | 180 ° | Assembly Hardware Cable Clamp Grommets | ||
Assmann WSW Components | Zinc | B | Nickel | Metal | 25pos HD44pos | Silver | Round | Two Piece Backshell | Mating Screws 4-40 | Shielded | 45 ° | Assembly Hardware Cable Clamp Grommets | ||
Assmann WSW Components | Zinc | B | Nickel | Metal | 25pos HD44pos | Silver | Round | Two Piece Backshell | Mating Screws 4-40 | Shielded | 180 ° | Assembly Hardware Grommets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 13.38 | |
Description
General part information
ACOV-SUB Series
15 Position Two Piece Backshell Connector Silver 45° Shielded
