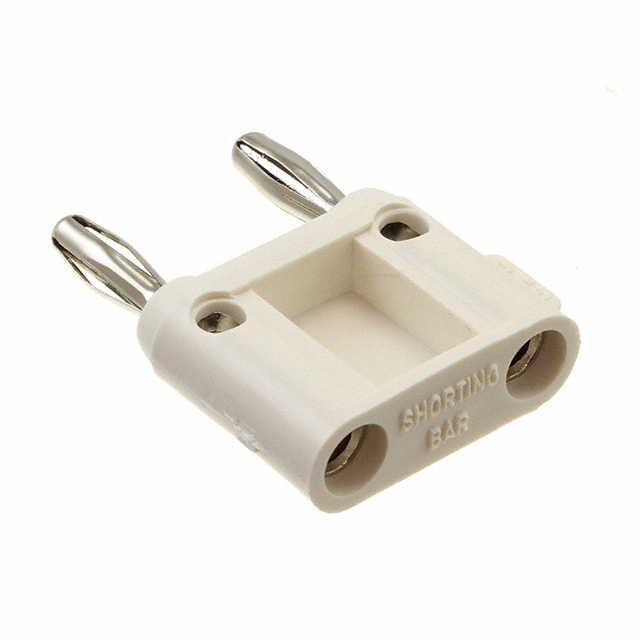

MDP-S-9
ActivePomona Electronics
CONN DBL BAN PLUG STACK SLDRLESS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDP-S-9
ActivePomona Electronics
CONN DBL BAN PLUG STACK SLDRLESS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDP-S-9 |
|---|---|
| Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | White |
| Contact Finish | Nickel |
| Contact Material | Beryllium Copper |
| Features | Shorting Bar |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | 50 °C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solderless |
| Type | Banana Plug, Double, Stackable |
| Wire Gauge | 18 AWG |
MDP-S Series
| Part | Plug/Mating Plug Diameter | Wire Gauge | Termination | Contact Finish | Operating Temperature | Insulation | Features | Contact Material | Type | Body Material | Gender | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | White |
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | Black |
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | White |
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | Black |
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | Red |
Pomona Electronics | Standard Banana | 18 AWG | Solderless | Nickel | 50 °C | Non-Mating End Insulated | Shorting Bar | Beryllium Copper | Banana Plug Double Stackable | Acrylonitrile Butadiene Styrene (ABS) | Male | Free Hanging (In-Line) | Red |
Pomona Electronics | Standard Banana | Solder | Nickel | Non-Mating End Insulated | Turret | Beryllium Copper | Banana Plug Double Stackable | Polypropylene (PP) | Male | Free Hanging (In-Line) | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.79 | |
Description
General part information
MDP-S Series
Banana Plug, Double, Stackable Connector Standard Banana Solderless White
