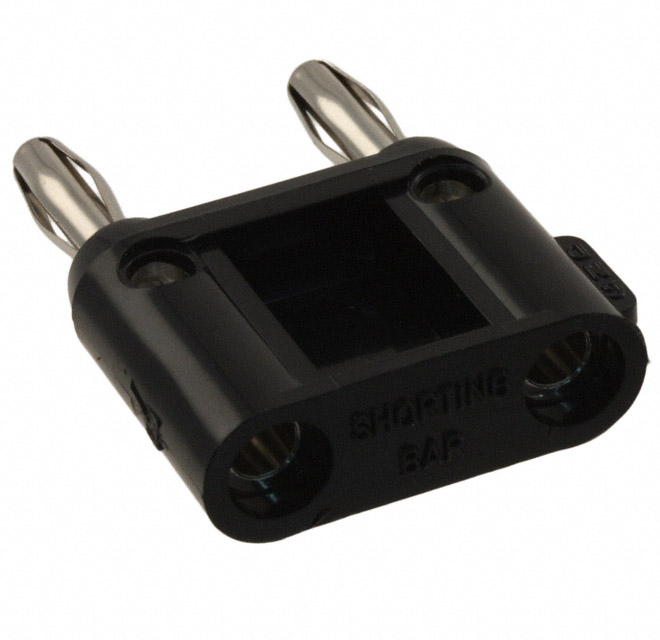

MDP-S-0

Active

Pomona Electronics

CONN DBL BAN PLUG STACK SLDRLESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDP-S-0

Active

Pomona Electronics

CONN DBL BAN PLUG STACK SLDRLESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDP-S-0

Body Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Black
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Shorting Bar
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Double, Stackable
Wire Gauge	18 AWG

MDP-S Series

Part	Plug/Mating Plug Diameter	Wire Gauge	Termination	Contact Finish	Operating Temperature	Insulation	Features	Contact Material	Type	Body Material	Gender	Mounting Type	Color
Pomona Electronics MDP-S-9#	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	White
Pomona Electronics MDP-S-0	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	Black
Pomona Electronics MDP-S-9	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	White
Pomona Electronics MDP-S-0#	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	Black
Pomona Electronics MDP-S-2#	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	Red
Pomona Electronics MDP-S-2	Standard Banana	18 AWG	Solderless	Nickel	50 °C	Non-Mating End Insulated	Shorting Bar	Beryllium Copper	Banana Plug Double Stackable	Acrylonitrile Butadiene Styrene (ABS)	Male	Free Hanging (In-Line)	Red
Pomona Electronics MDP-ST	Standard Banana		Solder	Nickel		Non-Mating End Insulated	Turret	Beryllium Copper	Banana Plug Double Stackable	Polypropylene (PP)	Male	Free Hanging (In-Line)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.79

Description

General part information

MDP-S Series

Banana Plug, Double, Stackable Connector Standard Banana Solderless Black
