PCB-C-26-T-20

Active

Adam Tech

CONN FFC FPC VERT 26POS 1MM PCB

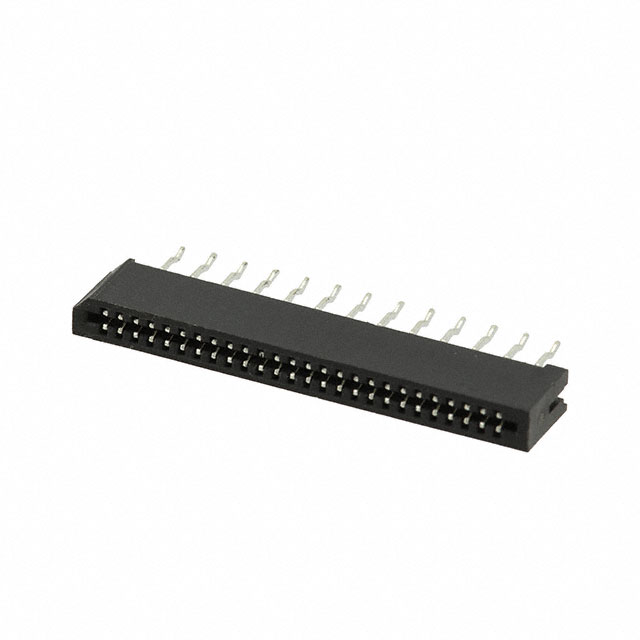

PCB-C-26-T-20

Active

Adam Tech

CONN FFC FPC VERT 26POS 1MM PCB

Description Specifications Series Pricing CAD Documents

Description

General part information

PCB-C Series

26 Position FFC, FPC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification	PCB-C-26-T-20

Cable End Type	Straight
Connector/Contact Type	2 Sided, Contacts, Vertical
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.217 in
Housing Color	Black
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Pitch	0.039 in
Termination	Kinked Pin
Voltage Rating	50 V

PCB-C Series

Part	Height Above Board	Contact Finish	Mounting Type	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Cable End Type	Contact Material	Number of Positions	Connector/Contact Type	Material Flammability Rating	FFC, FCB Thickness	Features	Termination	Pitch	Flat Flex Type	Housing Color	Current Rating	Voltage Rating
Adam Tech PCB-C-07-T-SMT	0.22 in	Tin	Surface Mount	Thermoplastic	-55 °C	85 °C	Straight	Phosphor Bronze	7	2 Sided Contacts Vertical	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Solder	0.039 in	FFC FPC	Black	0.5 A
Adam Tech PCB-C-07-SA-20	0.11 in	Tin	Right Angle Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	7	Bottom Contacts Top	UL94 V-0	0.3 mm		Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
Adam Tech PCB-C-26-T-20	0.217 in	Tin	Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	26	2 Sided Contacts Vertical	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
Adam Tech PCB-C-18-SA-20	0.11 in	Tin	Right Angle Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	18	Bottom Contacts Top	UL94 V-0	0.3 mm		Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
Adam Tech PCB-C5-22-SA-SMT	0.11 in	Tin	Right Angle Surface Mount	Glass Filled Thermoplastic	-25 °C	85 °C	Straight	Copper Alloy	22	Bottom Contacts Top	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Solder	0.039 in	FFC FPC	Black	1 A
Adam Tech PCB-C-20-SA-20	0.11 in	Tin	Right Angle Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	20	Bottom Contacts Top	UL94 V-0	0.3 mm		Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
Adam Tech PCB-C-06-T-20	0.217 in	Tin	Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	6	2 Sided Contacts Vertical	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
Adam Tech PCB-C-08-T-SMT	0.22 in	Tin	Surface Mount	Thermoplastic	-55 °C	85 °C	Straight	Phosphor Bronze	8	2 Sided Contacts Vertical	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Solder	0.039 in	FFC FPC	Black	0.5 A
Adam Tech PCB-C5-11-SA-SMT	0.11 in	Tin	Right Angle Surface Mount	Glass Filled Thermoplastic	-25 °C	85 °C	Straight	Copper Alloy	11	Bottom Contacts Top	UL94 V-0	0.3 mm	Low Insertion Force (LIF)	Solder	0.039 in	FFC FPC	Black	1 A
Adam Tech PCB-C-05-SA-20	0.11 in	Tin	Right Angle Through Hole	Thermoplastic	-20 °C	85 °C	Straight	Phosphor Bronze	5	Bottom Contacts Top	UL94 V-0	0.3 mm		Kinked Pin	0.039 in	FFC FPC	Black	0.5 A	50 V
