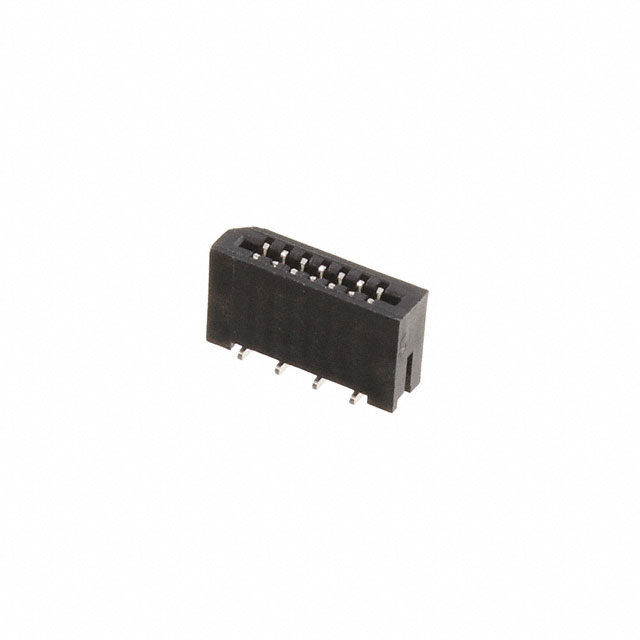

CONN FFC FPC VERT 7POS 1MM SMD

PCB-C-07-T-SMT

PCB-C-07-T-SMT

Active

CONN FFC FPC VERT 7POS 1MM SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

PCB-C Series

7 Position FFC, FPC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Surface Mount

Technical Specifications

Parameters and characteristics for this part

Specification	PCB-C-07-T-SMT

Cable End Type	Straight
Connector/Contact Type	2 Sided, Contacts, Vertical
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.22 in
Housing Color	Black
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.039 in
Termination	Solder
