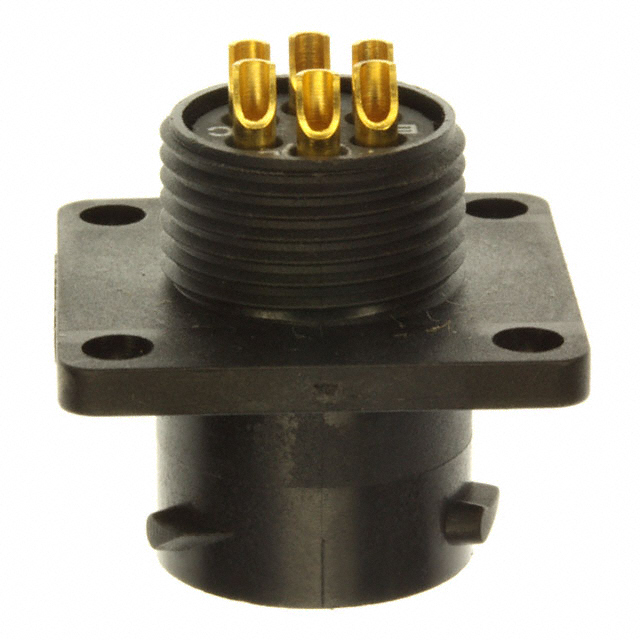

UTS010E6S
ActiveSouriau-Sunbank by Eaton
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTS010E6S
ActiveSouriau-Sunbank by Eaton
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS010E6S |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 6 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Size - Insert | 10-6 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
UTS01 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Insert Material | Number of Positions [custom] | Number of Positions [custom] | Orientation | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Applications | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Ingress Protection | Material Flammability Rating | Shielding | Features | Voltage Rating | Connector Type | Contact Material | Contact Finish - Mating | Shell Material | Termination | Mounting Feature | Fastening Type | Number of Positions | Shell Size - Insert | Note | Type | Contact Shape | Contact Size | Housing Color | Contact Type | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 10 A | Polychloroprene | 1 | 6 | N | 14 | 7 | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Panel Mount Through Hole | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 500 V | Male Pins Receptacle | Brass | Gold | Polybutylene Terephthalate (PBT) | Solder | Flange | Bayonet Lock | ||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 6 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Panel Mount Through Hole | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Receptacle Female Sockets | Brass | Gold | Polybutylene Terephthalate (PBT) | Solder | Flange | Bayonet Lock | 7 | 10-7 | ||||||||||||
Souriau-Sunbank by Eaton | N | -40 °C | 105 ░C | IP67 IP69K | UL94 V-0 | Unshielded | Receptacle Housing | Flange | Bayonet Lock | 4 | 10-4 | Contacts Not Included | For Male Pins | Circular | 16 | Black | Crimp | ||||||||||||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 4.5 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Male Pins Receptacle | Brass | Gold | Polybutylene Terephthalate (PBT) | Flange | Bayonet Lock | 10 | |||||||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 4.5 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Receptacle Female Sockets | Brass | Gold | Polybutylene Terephthalate (PBT) | Flange | Bayonet Lock | 12 | 14-12 | ||||||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 6 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Receptacle Female Sockets | Brass | Gold | Polybutylene Terephthalate (PBT) | Flange | Bayonet Lock | 6 | 10-6 | ||||||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 6 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Receptacle Female Sockets | Brass | Gold | Polybutylene Terephthalate (PBT) | Flange | Bayonet Lock | 7 | 10-7 | ||||||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 10 A | Polychloroprene | 1 | 6 | N | 14 | 7 | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Panel Mount Through Hole | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 500 V | Receptacle Female Sockets | Brass | Gold | Polybutylene Terephthalate (PBT) | Solder | Flange | Bayonet Lock | ||||||||||
Souriau-Sunbank by Eaton | 16 Áin | 0.41 Ám | 4 A | Polychloroprene | N | Energy Instrumentation Lighting Telecommunications | Plastic | -40 °C | 105 ░C | Black | IP68 IP69K | UL94 V-0 | Unshielded | UV Resistant | 250 VDC | Male Pins Receptacle | Brass | Gold | Polybutylene Terephthalate (PBT) | Flange | Bayonet Lock | 19 | 19 | 14 | |||||||||||||
Souriau-Sunbank by Eaton | 1 | 6 | N | 14 | 7 | -40 °C | 105 ░C | IP67 IP69K | UL94 V-0 | Unshielded | Receptacle Housing | Flange | Bayonet Lock | Contacts Not Included | For Female Sockets | Circular | 16 | Black | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.98 | |
| 10 | $ 16.62 | |||
| 25 | $ 15.91 | |||
| 50 | $ 15.39 | |||
| 100 | $ 14.88 | |||
| 250 | $ 14.06 | |||
| 500 | $ 13.65 | |||
Description
General part information
UTS01 Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
