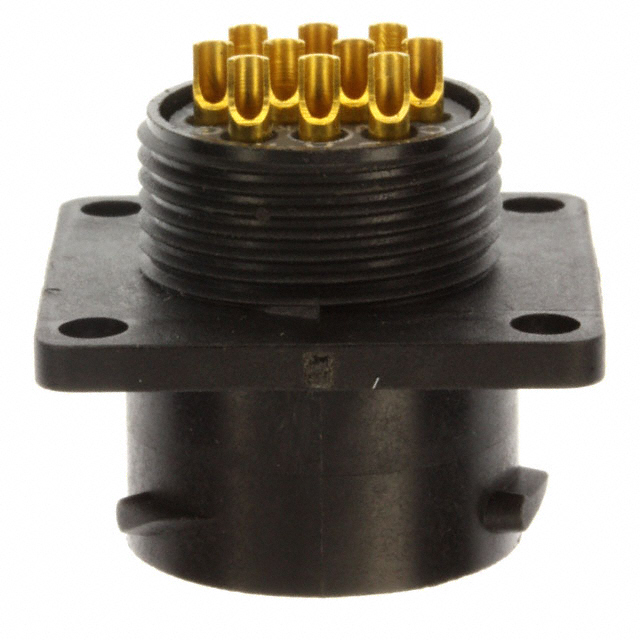

UTS012E10P

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

UTS012E10P

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS012E10P

Applications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	4.5 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Voltage Rating	250 VDC

UTS01 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Number of Positions [custom]	Number of Positions [custom]	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Applications	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Ingress Protection	Material Flammability Rating	Shielding	Features	Voltage Rating	Connector Type	Contact Material	Contact Finish - Mating	Shell Material	Termination	Mounting Feature	Fastening Type	Number of Positions	Shell Size - Insert	Note	Type	Contact Shape	Contact Size	Housing Color	Contact Type	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Souriau-Sunbank by Eaton UTS014D7P	16 Áin	0.41 Ám	10 A	Polychloroprene	1	6	N	14	7	Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C	Panel Mount Through Hole	Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	500 V	Male Pins Receptacle	Brass	Gold	Polybutylene Terephthalate (PBT)	Solder	Flange	Bayonet Lock
Souriau-Sunbank by Eaton UTS010D7S	16 Áin	0.41 Ám	6 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C	Panel Mount Through Hole	Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Receptacle Female Sockets	Brass	Gold	Polybutylene Terephthalate (PBT)	Solder	Flange	Bayonet Lock	7	10-7
Souriau-Sunbank by Eaton UTS0104P							N					-40 °C	105 ░C			IP67 IP69K	UL94 V-0	Unshielded			Receptacle Housing					Flange	Bayonet Lock	4	10-4	Contacts Not Included	For Male Pins	Circular	16	Black	Crimp
Souriau-Sunbank by Eaton UTS012E10P	16 Áin	0.41 Ám	4.5 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C		Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Male Pins Receptacle	Brass	Gold	Polybutylene Terephthalate (PBT)		Flange	Bayonet Lock	10
Souriau-Sunbank by Eaton UTS014E12S	16 Áin	0.41 Ám	4.5 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C		Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Receptacle Female Sockets	Brass	Gold	Polybutylene Terephthalate (PBT)		Flange	Bayonet Lock	12	14-12
Souriau-Sunbank by Eaton UTS010E6S	16 Áin	0.41 Ám	6 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C		Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Receptacle Female Sockets	Brass	Gold	Polybutylene Terephthalate (PBT)		Flange	Bayonet Lock	6	10-6
Souriau-Sunbank by Eaton UTS010E7S	16 Áin	0.41 Ám	6 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C		Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Receptacle Female Sockets	Brass	Gold	Polybutylene Terephthalate (PBT)		Flange	Bayonet Lock	7	10-7
Souriau-Sunbank by Eaton UTS014D7S	16 Áin	0.41 Ám	10 A	Polychloroprene	1	6	N	14	7	Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C	Panel Mount Through Hole	Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	500 V	Receptacle Female Sockets	Brass	Gold	Polybutylene Terephthalate (PBT)	Solder	Flange	Bayonet Lock
Souriau-Sunbank by Eaton UTS014E19P	16 Áin	0.41 Ám	4 A	Polychloroprene			N			Energy Instrumentation Lighting Telecommunications	Plastic	-40 °C	105 ░C		Black	IP68 IP69K	UL94 V-0	Unshielded	UV Resistant	250 VDC	Male Pins Receptacle	Brass	Gold	Polybutylene Terephthalate (PBT)		Flange	Bayonet Lock	19								19	14
Souriau-Sunbank by Eaton UTS0147S					1	6	N	14	7			-40 °C	105 ░C			IP67 IP69K	UL94 V-0	Unshielded			Receptacle Housing					Flange	Bayonet Lock			Contacts Not Included	For Female Sockets	Circular	16	Black	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.74
		10	$ 18.16
		25	$ 17.38
		50	$ 16.82
		100	$ 16.26
		250	$ 15.36
		500	$ 14.91

Description

General part information

UTS01 Series

10 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
