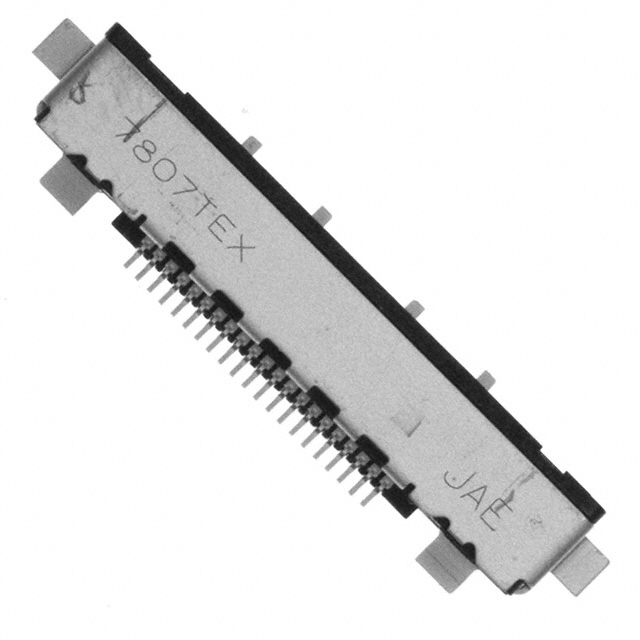

FI-RE21S-HF-R1500

Active

JAE Electronics

CONN RCPT 21P 0.02 GOLD SMD R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 21P 0.02 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FI-RE21S-HF-R1500

Applications	Medical, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Female Blade Socket
Current Rating (Amps)	0.8 A
Fastening Type	Latch Holder
Features	Solder Retention, Shielded
Insulation Height	0.148 in
Insulation Height	3.75 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Applications	Number of Positions	Contact Finish - Post	Termination	Contact Material	Number of Positions Loaded	Style	Current Rating (Amps)	Number of Rows	Insulation Material	Mounting Type	Connector Type	Features	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]
JAE Electronics FI-RE21S-VF-R1300	UL94 V-0	Latch Holder	Gold	General Purpose Medical	21	Tin	Solder	Copper Alloy	All	Board to Cable/Wire	0.8 A	1	Plastic	Surface Mount	Receptacle	Shielded Solder Retention	0.02 in	0.5 mm	4.65 mm	0.183 in	10.1 mm 16.1 mm	Female Blade Socket	-40 °C	80 C
JAE Electronics FI-RE21S-HF-R1500	UL94 V-0	Latch Holder	Gold	General Purpose Medical	21	Tin	Solder	Copper Alloy	All	Board to Cable/Wire	0.8 A	1	Plastic	Surface Mount Right Angle	Receptacle	Shielded Solder Retention	0.02 in	0.5 mm	3.75 mm	0.148 in		Female Blade Socket	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

21 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold
